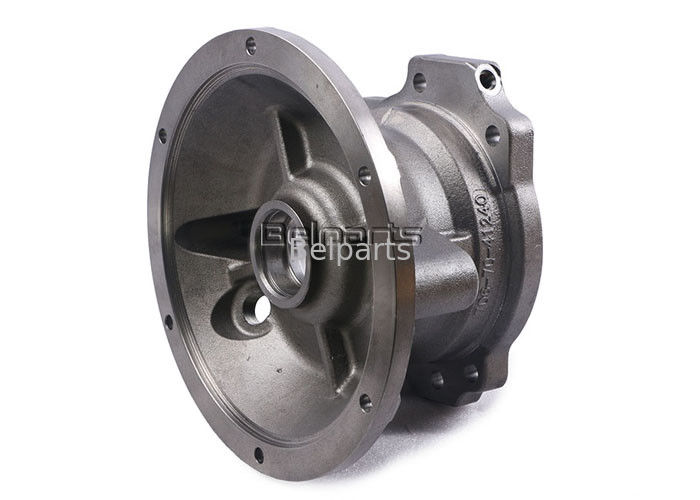

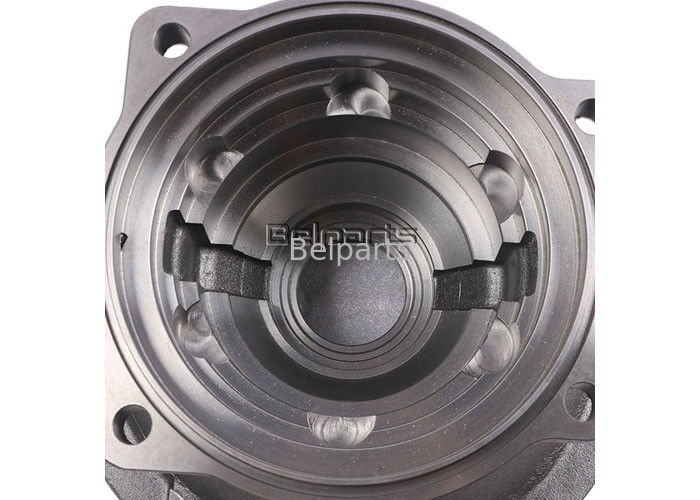

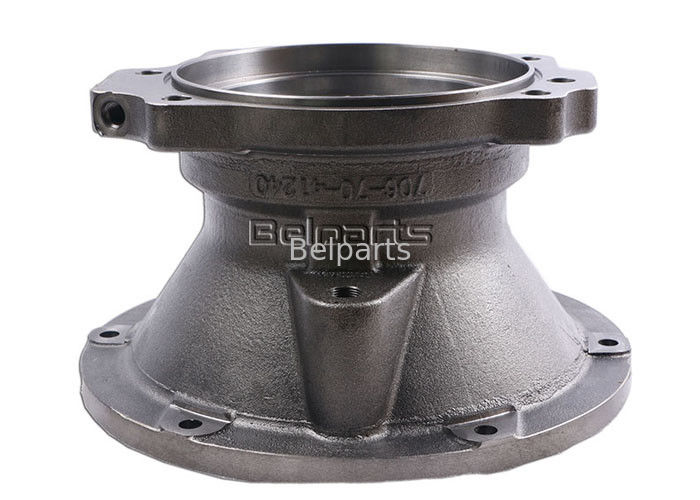

Excavator 706-7G-01140 PC200-8 PC200-7 Hydraulic Swing Motor Case
試供品およびクーポンのための私に連絡しなさい。
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
スカイプ: sales10@aixton.com
心配があれば、私達は24時間のオンライン・ヘルプを提供する。
x商品の詳細
| モデル名前 | PC200-8 PC200-7 | ブランド名 | Belparts |
|---|---|---|---|
| 起源の場所 | 広東省、中国 | 港 | Huangpu、広州 |
| 供給の能力 | 1000PCS | 受渡し時間 | 1-7日 |
| パッキング | 木の場合 | 部品番号 | 706-7G-01140 |
製品の説明
Excavator 706-7G-01140 PC200-8 PC200-7 Hydraulic Swing Motor Case
|
swing motor Case |
|
|
Place of Origin: |
China(mainland) |
|
Model: |
PC200-8 PC200-7 |
|
MOQ: |
1 PCS |
|
Payment term: |
T/T & Paypal |
|
Delivery time: |
Within 2 days after receiving the payment |
|
Packing: |
Standard exporting packing or as required |
List of spare parts
| # | Part No | Part Name | Qty. | Price request |
|---|---|---|---|---|
| 1 | 706-7G-01140 | MOTOR ASS'Y | 1 | |
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.Y1640-01A0 TO Y1640-03A0 | ||||
| 1 | (706-7G-03110) | MOTOR SUB ASS'Y | 1 | |
| 1 | (*706-7G-41630) | SHAFT,DRIVE | 1 | |
| 2 | (*706-75-42880) | Bearing | 1 | |
| 3 | (*706-7G-41660) | Spacer | 1 | |
| 4 | (*706-76-40890) | Bearing | 1 | |
| 5 | (*706-7G-41510) | SPACER KIT | 1 | |
| 5 | SPACER,T=3.1MM | 1 | ||
| 5 | SPACER,T=3.4MM | 1 | ||
| 5 | SPACER,T=3.7MM | 1 | ||
| 6 | 04064-04518 | RING,SNAP (WITHOUT R.P.C.U.) | 1 | |
| 7 | 706-75-43410 | SEAL,OIL | 1 | |
| 8 | 706-7G-41910 | Spacer | 1 | |
| 9 | 04065-06220 | RING, SNAP | 1 | |
| 10 | (*706-7G-41310) | BLOCK,CYLINDER | 1 | |
| 11 | (*706-7G-41720) | PLATE,VALVE | 1 | |
| 12 | (*706-75-43750) | PIN,DOWEL | 1 | |
| 13 | (*706-7G-41320) | SHAFT,CENTER | 1 | |
| 14 | (*706-7G-41130) | RING,CENTER | 1 | |
| 15 | (*706-7G-41140) | Spring | 1 | |
| 16 | (*706-7G-05010) | RETAINER KIT | 1 | |
| 16 | Retainer | 1 | ||
| 17 | Screw | 7 | ||
| 18 | (*706-7G-41410) | PISTON SUB ASS'Y | 7 | |
| 19 | (*706-7G-91441) | Plate | 5 | |
| 20 | (*706-7G-91450) | Disc | 4 | |
| 21 | (*706-7G-91120) | PISTON,BRAKE | 1 | |
| 22 | (*706-75-92310) | O-ring | 1 | |
| 23 | (*708-8F-31610) | O-ring | 1 | |
| 24 | (*706-7G-91360) | Spring | 6 |
