起源の場所:
中国
ブランド名:
Belparts
証明:
CE
モデル番号:
EC80D ECR88
| Application | Excavator |
|---|---|

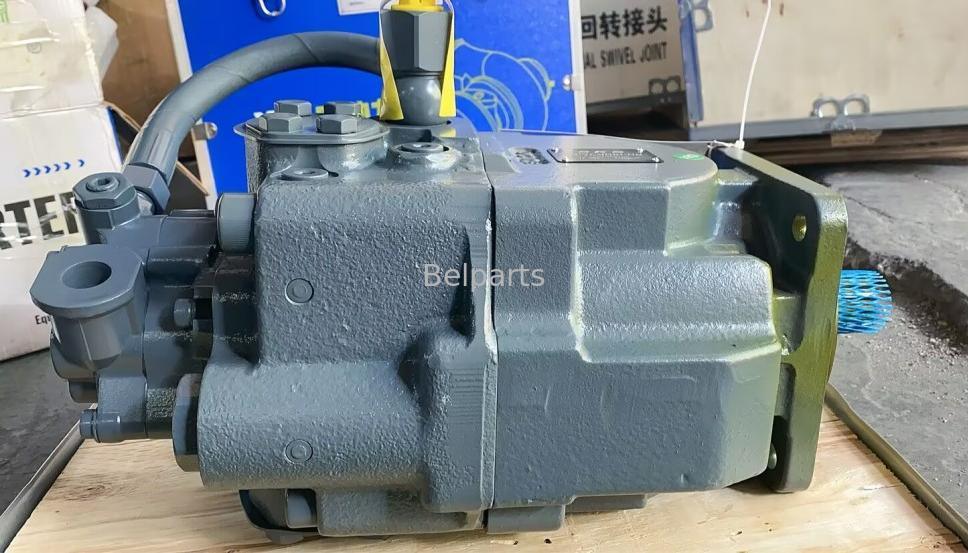

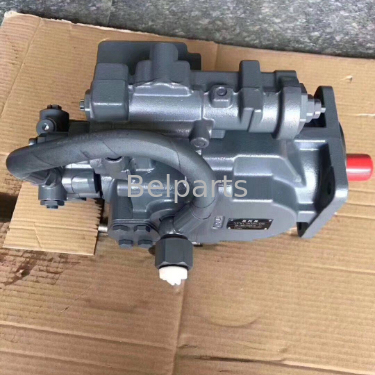

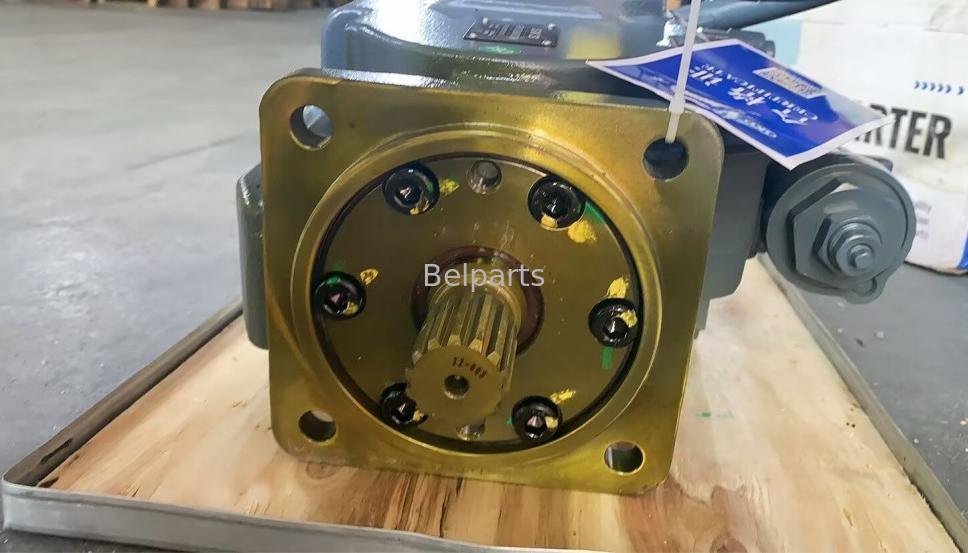

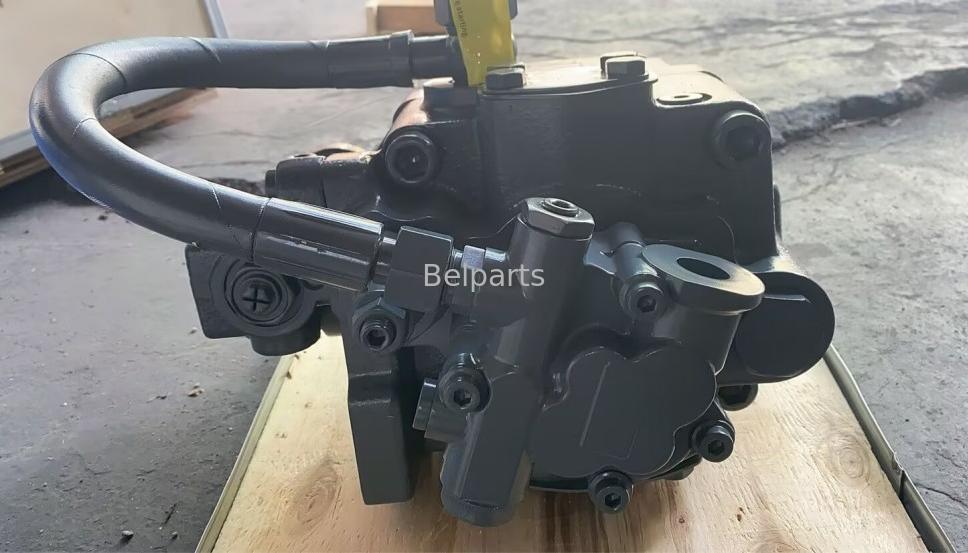

| Part name | Hydraulic Main pump |
| Machine model | EC80D ECR88 |
| Type | PVC90RC08 SA7V90R |
| Part number | 14520750 14623786 VOE14623786 VOE14520750 |
| Warranty | 12 months |
| Delivery time | 3-7 Days |
| Shipment | Express/freight/sea/train |
| Quality | Made in China |
| MOQ | 1 Piece |
| Payment term | T/T, Trade Assurance, Paypal and et |
| # | Part No | Part Name | Qty. (REQ=1) |
|---|---|---|---|
| VOE 14520750 | Pump | 1 | |
| 1 | VOE 14528774 | Shaft | 1 |
| 2 | VOE 14525101 | Seal | 1 |
| 3 | VOE 14528775 | Shim | REQ |
| 4 | VOE 14528779 | Roller Bearing | 1 |
| 5 | VOE 14525105 | Screw | 2 |
| 6 | VOE 14528780 | Plate | 1 |
| 7 | VOE 14528781 | Plate | 1 |
| 8 | VOE 14528782 | Plate | 1 |
| 9 | VOE 14528783 | Ring | 1 |
| 10 | VOE 14528784 | Bushing | 1 |
| 11 | VOE 14528785 | Spring | 1 |
| 12 | VOE 14528786 | Plate | 1 |
| 13 | VOE 14528787 | Retainer | 1 |
| 14 | SA 8230-00240 | O-ring | 1 |
| 15 | SA 8230-31150 | Pin | 4 |
| 16 | VOE 14528788 | Needle Bearing | 1 |
| 17 | SA 9511-22055 | O-ring | 1 |
| 18 | SA 9511-12029 | O-ring more | 1 |
| 19 | VOE 14528789 | Rod | 1 |
| 20 | SA 8230-01160 | Cap more | 2 |
| 21 | SA 9511-12011 | O-ring more | 2 |
| 22 | VOE 14528790 | Piston | 1 |
| 23 | VOE 14530870 | Relief valve | 1 |
| 24 | VOE 14528794 | Retainer | 1 |
| 25 | VOE 14528795 | Screw | 6 |
| 26 | VOE 14528796 | O-ring | 1 |
| 27 | VOE 14528797 | Guide | 1 |
| 28 | VOE 14528798 | Rod | 1 |
| 29 | VOE 14525142 | Spring | 6 |
| 30 | VOE 14528801 | Piston | 1 |
| 31 | VOE 14525147 | Spring | 1 |
| 32 | VOE 14528802 | Bushing | 2 |
| 33 | VOE 14528803 | Spring | 2 |
| 34 | VOE 14525118 | Plug | 2 |
| 35 | SA 8230-28240 | O-ring | 1 |
| 36 | VOE 14528804 | Cap | 1 |
| 37 | VOE 14528805 | Coupling | 1 |
| 38 | VOE 14528806 | Gear Pump | 1 |
| 39 | VOE 14513175 | Bolt | 3 |
| 40 | VOE 14528807 | Screw | 2 |
| 41 | VOE 14525159 | Washer | 2 |
| 42 | VOE 14528808 | Screw | 1 |
| 43 | VOE 14533175 | Plug | 1 |
| 100 | VOE 14528809 | Sealing Kit | 1 |
Belparts have a large workshop for excavator parts producing, from material cutting, welding, heating treating, assembling, debugging, painting, testing, every part we will confirm before leaving the factory.
If possible, you can send us pictures of old products, nameplate or the size for reference.
The warranty is 6/12 Months based on the item details.
We can receive payment through T/T, Western Union, Paypal(for small amount), Alibaba trade assurance.
Once your payment is confirmed, we will arrange the goods within 24 hours; if not in stock, we will inform you before placing the order.
First of all, I have confidence in the quality of our products, if you really found something wrong, pls provide pictures for us and we will check. After it is confirmed, pls return to us, we will offer the correct item.
We are specialized in the excavator spare parts, such as travel motor gearbox/ass'y/parts, swing gearbox/ass'y/motor/parts, hydraulic pump assy/parts and gear parts. If you need other excavator parts, we also can supply as your requirements.
私達にあなたの照会を直接送りなさい
