起源の場所:
中国
ブランド名:
Belparts
証明:
CE
モデル番号:
ボブキャット 331 334 430

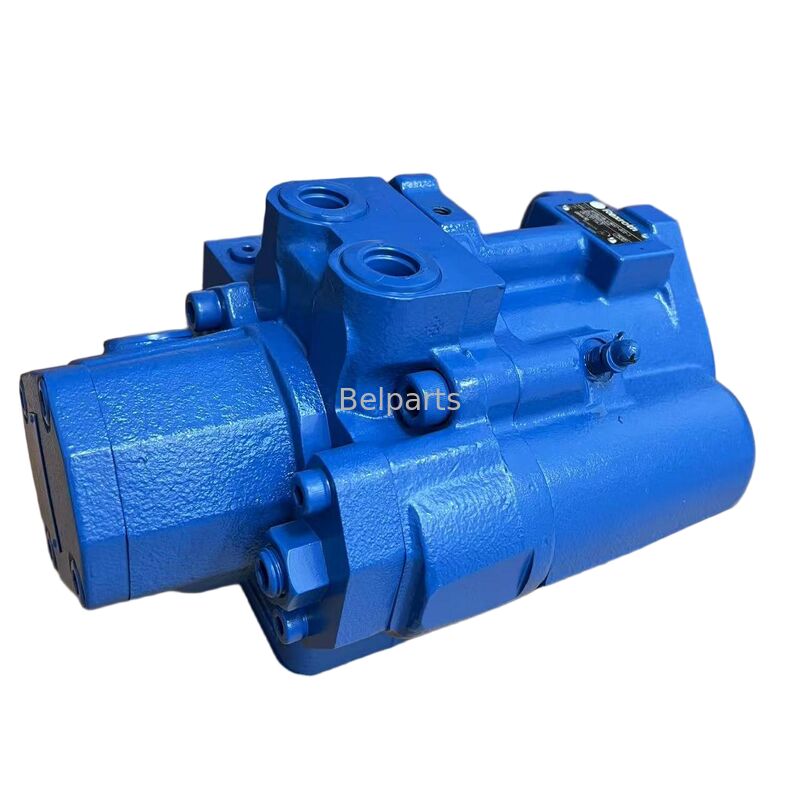

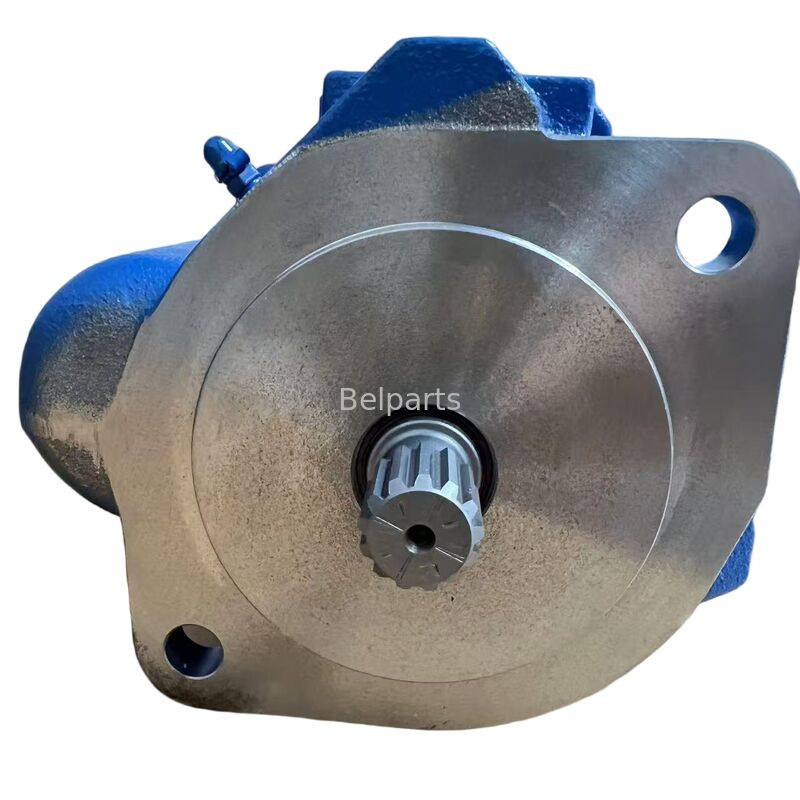

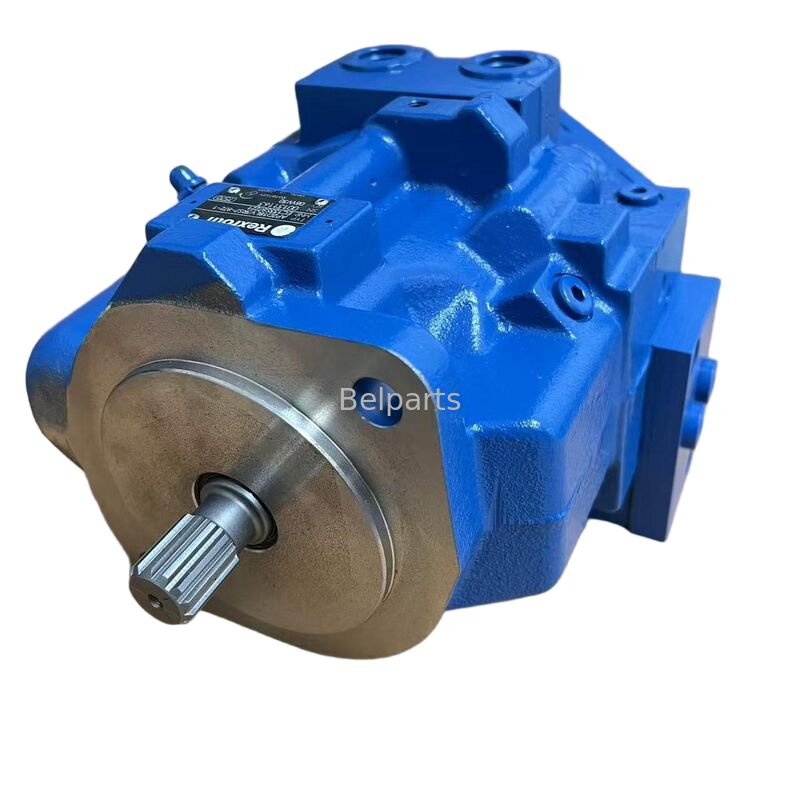

Bobcat 331 334 430 Hydraulic Pump For Mini Excavator Parts 6680010 6676165 REXROTH AP2D12 OEM Piston Pump AP2D12LV1RS7-966-1
|
Application
|
Excavator
|
|
Part name
|
Main Hydraulic Pump
|
|
Type
|
AP2D12LV3RS7
|
|
Suitable for
|
Bobcat 331 334 430
|
|
Part number
|
6680010 6676165 6680010REM |
|
Warranty
|
12 months
|
|
Delivery time
|
3-7 Days
|
|
Shipment
|
Express/freight/sea/train
|
|
Quality
|
OEM New
|
|
MOQ
|
1 Piece
|
|
Payment term
|
T/T, Trade Assurance, Paypal and et
|
| # | Part No. | Description | Qty |
|---|---|---|---|
| 1 | 6680010REM | PUMP HYDRAULIC; NLA - Was 6680010REM | 1 |
| 1 | 6680010 | PUMP, HYD; NLA - W/gear pump - Was 6680010 | 1 |
| 1 | ---- | GEAR PUMP | 1 |
| 2 | ---- | HOUSING; NSS | 1 |
| 3 | ---- | CONE; NSS - Order Ref. 10 | 1 |
| 4 | 6678578 | SPACER | 2 |
| 5 | 6678581 | O-RING | 2 |
| 6 | 6678577 | COVER; Was 6678571 | 2 |
| 7 | 6678580 | SCREW | 4 |
| 8 | 6679470 | BEARING | 2 |
| 9 | 6679471 | RETAINER; NLA - Was 6679471 | 1 |
| 10 | 6678579 | BEARING; W/Ref. 3 | 2 |
| 11 | 6677376 | HANGER | 1 |
| 12 | 6677375 | SHAFT ASSEMBLY; Assy - W/Ref. 8, 9 | 1 |
| 13 | 6679474 | RETAINER | 1 |
| 14 | 6679469 | SEAL | 1 |
| 15 | 6679473 | O-RING | 1 |
| 16 | 6679472 | SEAL | 1 |
| 17 | 6678576 | SHAFT; Was 6679468 | 1 |
| 18 | 6677377 | GROUP, ROTARY; group | 1 |
| 19 | 6678592 | PLATE | 1 |
| 20 | 6678591 | COVER | 1 |
| 20 | 6678593 | PIN, DOWEL | 2 |
| 20 | 6678595 | PLUG | 7 |
| 20 | 6678597 | ORIFICE | 1 |
| 21 | 6678594 | SCREW | 1 |
| 21 | 6678599 | SCREW | 1 |
| 21 | 6678600 | SCREW | 3 |
| 22 | 6678605 | SCREW; Was 6678619 | 2 |
| 23 | 6678620 | NUT | 1 |
| 24 | 6678614 | COVER | 1 |
| 25 | 6678618 | O-RING | 1 |
| 26 | 6678615 | SCREW; spring | 1 |
| 27 | 6678621 | SHIM; 0.1 | x |
| 27 | 6678622 | SHIM; 0.2 | x |
| 27 | 6678623 | SHIM; 0.5 | x |
| 27 | 6678624 | SHIM; 1 | x |
| 28 | 6678651 | SEAT | 1 |
| 29 | 6678616 | SPRING | 1 |
| 30 | 6678596 | BEARING | 1 |
| 31 | 6678650 | PISTON | 1 |
| 32 | 6678607 | SPRING | 4 |
| 33 | 6678606 | SEAT | 1 |
| 34 | 6678598 | O-RING | 1 |
| 35 | 6678605 | SCREW | 1 |
| 36 | 6678601 | COVER, CYL | 1 |
| 37 | 6678603 | PIN | 2 |
| 38 | 6678604 | PIN | 1 |
| 39 | 6678609 | O-RING | 1 |
| 40 | 6678610 | O-RING | 1 |
| 41 | 6678608 | O-RING | 1 |
| 42 | 6678611 | ORIFICE | 1 |
| 43 | 6678649 | VENT; NLA - Was 6678649 | 1 |
| 44 | 6686060 | GASKET | 1 |
| 45 | 6677777 | KIT SEAL | 1 |
| 46 | 7326028 | KIT HANGER; Ref. 4, 5, 6, 7, 10 & 11 | 1 |
More Branded Accessories are Available
| Hydraulic Parts | Hydraulic Pump | Final Drive | Travel Reduction |
| Swing Motor | Swing Reduction | Control Valve | Gear Parts |
| Slew Bearing | Engine Assembly | Hydraulic Cylinder | ECU |
Guangzhou Belparts Engineering Machinery Limited (Est. 2013) is a premier supplier of high-performance hydraulic parts for global excavator brands. We provide a one-stop shop for mission-critical components with a focus on quality, reliability, and global reach.
Core Product Specialization
We stock a massive inventory for brands like Hitachi, Komatsu, VoIvo, CAT, Hyundai, Kobelco, Kubota, Yanmar, Bobcat, JCB, John Deere, Sany, Case, XCMG and Doosan:
Why Choose Us?
Four-Tier Quality Excellence
We offer the most comprehensive range of quality options in the industry:
Genuine: 100% original parts for peak performance.
OEM (Original Equipment Manufacturer): Same factory quality, better value.
Aftermarket: High-quality, cost-effective proprietary brand parts.
Original Refurbished: Professionally remanufactured original components for eco-friendly, budget-conscious reliability.
Process Features
About Factory
Belparts have a large workshop forexcavator parts producing, from materialcutting, wielding, heating treating,assembling, debugging,painting, testing,every part we will confirm before leavingthe factory.
FAQ
1.If I only know the excavator model, but can not offer parts No., what should I do ?
If possible, you can send us pictures of old products, nameplate or the size for reference.
2.What is the warranty of the parts after I purchased hydraulic axial piston pump & motor spare parts?
The warranty is 6/12 Months based on the item details.
3.How can I pay the order?
We can receive payment through T/T, Western Union, Paypal(for small amount),Alibaba trade assurance.
4.When will get the items after I place order?
Once your payment is confirmed, we will arrange the goods within 24 hours; if not in stock , we will inform you before placing the order.
5.How can I do if there is something wrong with the items?
First of all , I have confidence in the quality of our products ,if you really found something wrong ,pls provide pictures for us
and we will check. After it is confirmed, pls return to us , we will offer the correct item.
6.What is your main products ?
We are specialized in the excavator spare parts, such as travel motor gearbox/ass’y/parts, swing gearbox/ass’y/motor/parts,
hydraulic pump assy/parts and gear parts. If you need other excavator parts, we also can supply as your requirements.
