起源の場所:
中国製
ブランド名:
Belparts
モデル番号:
ZX250LC-5
| Application | Excavator, digger |
|---|---|

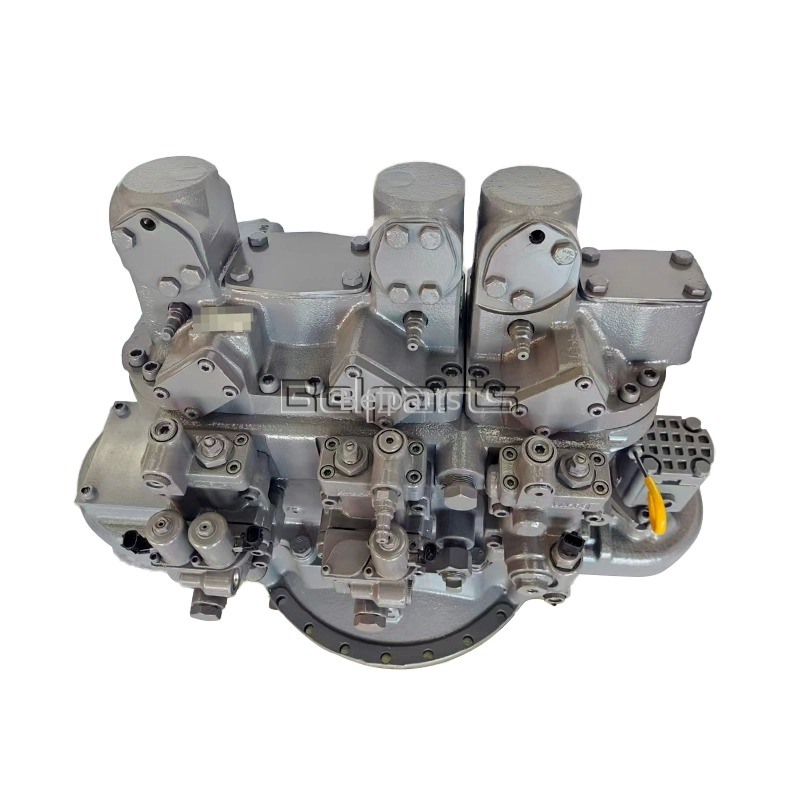

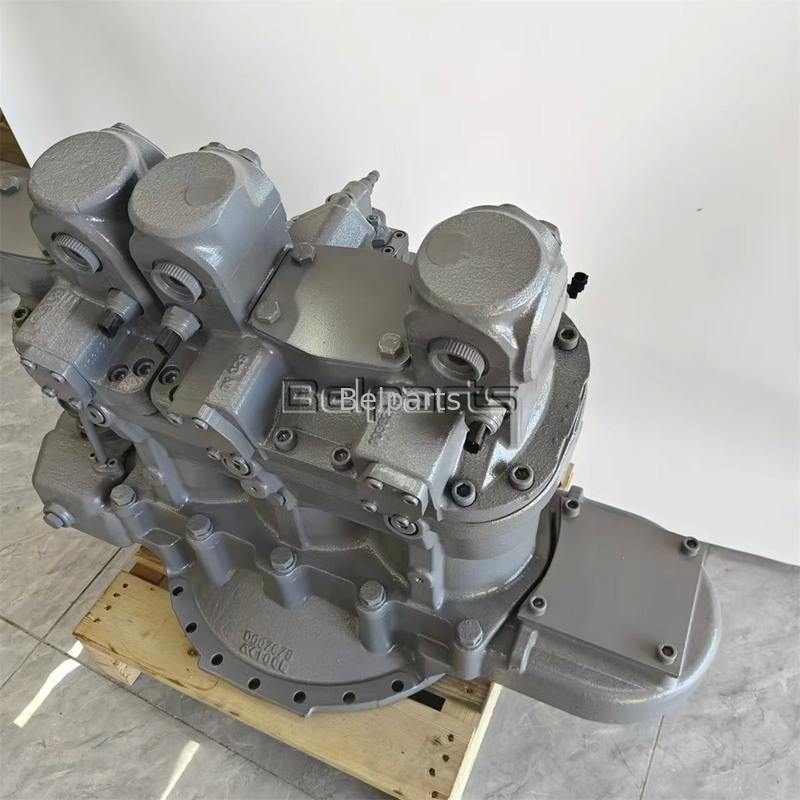

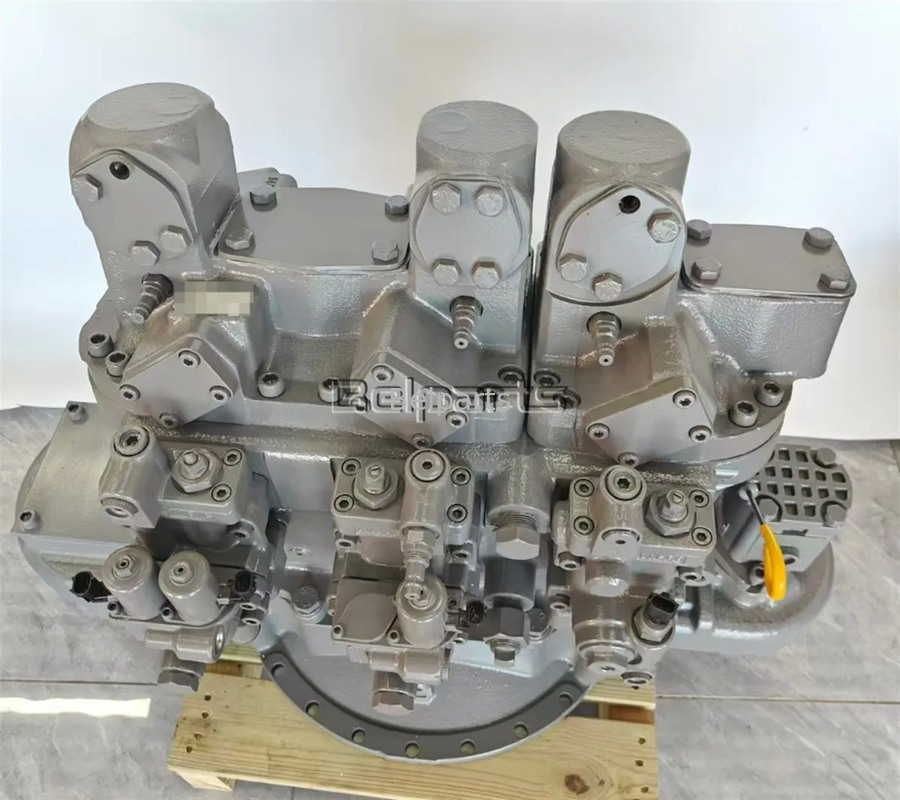

| Part Name | Hydraulic Main Pump |
| Model | ZX250LC-5 |
| Part Number | 9191165 9195236 HPV118JX-25A |
| Warranty | 6-12 months |
| Payment Term | T/T, Trade Assurance, Paypal and etc. |
| Brand | belparts |
| # | Part No | Part Name | Qty. | Price request |
|---|---|---|---|---|
| 9191165 | PUMP DEVICE (FOR ASSEMBLY OF MACHINE) | 1 | ||
| (9195236) | PUMP DEVICE (FOR TRANSPORTATION) | 1 | ||
| 01 | 1027184 | . CASING; GEAR | 1 | |
| 03 | 3063840 | . GEAR; PILOT | 1 | |
| 04 | 3055594 | . SHAFT; GEAR | 1 | |
| 08 | 958740 | . BRG.; BALL | 2 | |
| 09 | 962002 | . RING; RETAINING | 1 | |
| 10 | 991725 | . RING; RETAINING | 1 | |
| 30 | 3063842 | . GEAR | 1 | |
| 31 | 3063843 | . GEAR | 1 | |
| 32 | 4274552 | . RING; RETAINING | 2 | |
| 34 | 4099290 | . PIN; SPRING | 2 | |
| 43 | 4310055 | . SEAL; OIL | 1 | |
| 44 | 991725 | . RING; RETAINING | 1 | |
| 61 | 4438059 | . GAUGE; LEVEL | 1 | |
| 62 | 9743977 | . PIPE | 1 | |
| 63 | 9742779 | . PACKING | 1 | |
| 64 | M340816 | . BOLT; SOCKET | 2 | |
| 68 | 4265372 | . SENSOR; REVOL. | 1 | |
| 69 | 4306888 | . O-RING | 1 | |
| 70 | A590106 | . WASHER; PLANE | 1 | |
| 71 | M340616 | . BOLT; SOCKET | 1 | |
| 86 | 4234782 | . PLUG | 1 | |
| 87 | 4092534 | . PLUG | 1 | |
| 87A | 4509180 | .. O-RING | 1 | |
| 103 | . PUMP; UNIT | 1 | ||
| 112 | . NAME-PLATE | 1 | ||
| 113 | M492564 | . SCREW; DRIVE | 2 | |
| 120 | 4276918 | . PUMP; GEAR | 1 | |
| 121 | M341030 | . BOLT; SOCKET | 2 |
