起源の場所:
中国製
ブランド名:
Belparts
モデル番号:
ZX250LC-5

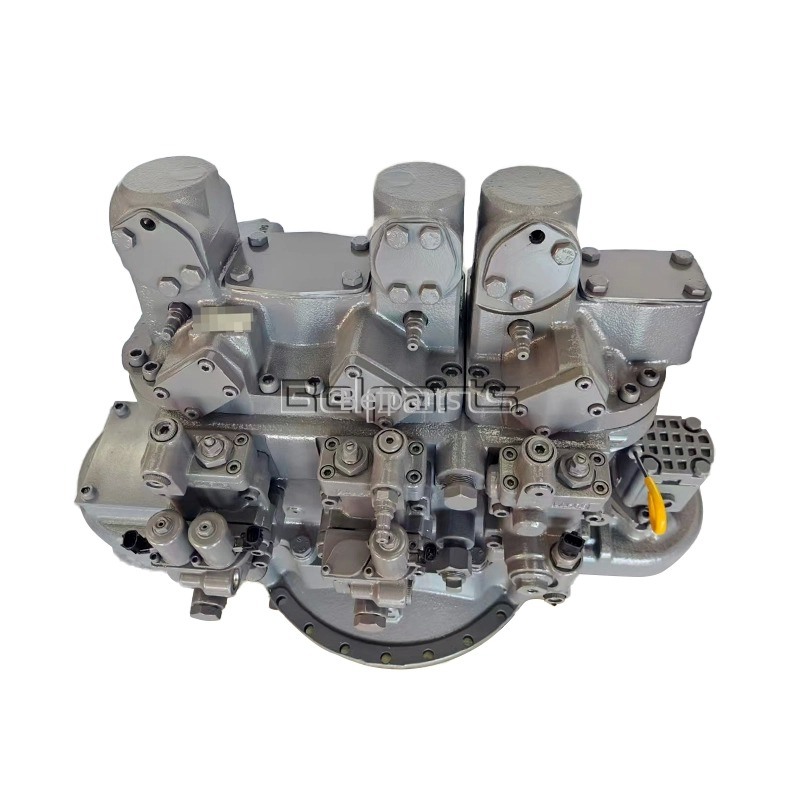

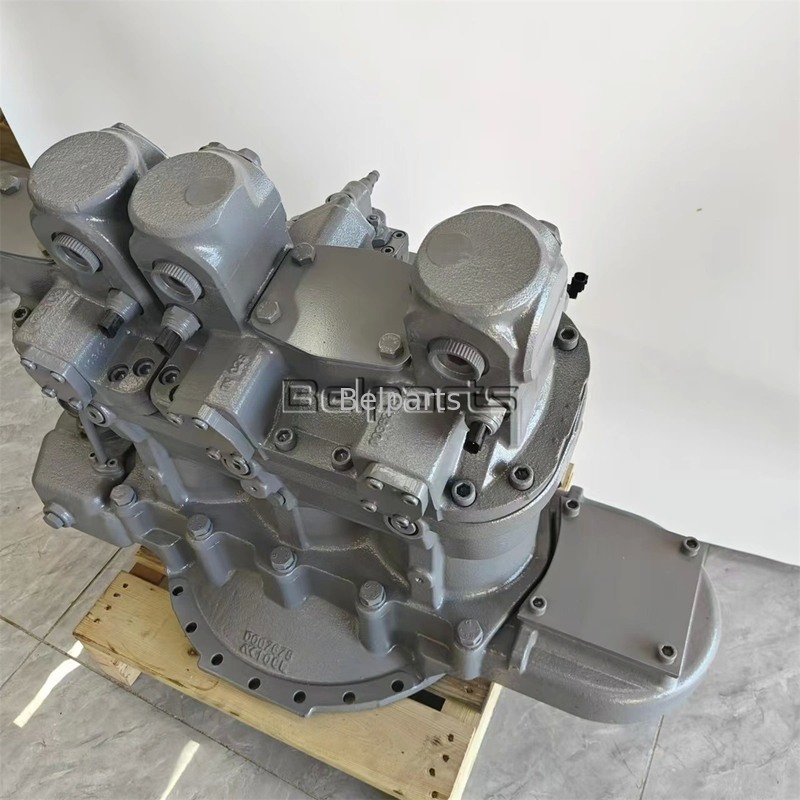

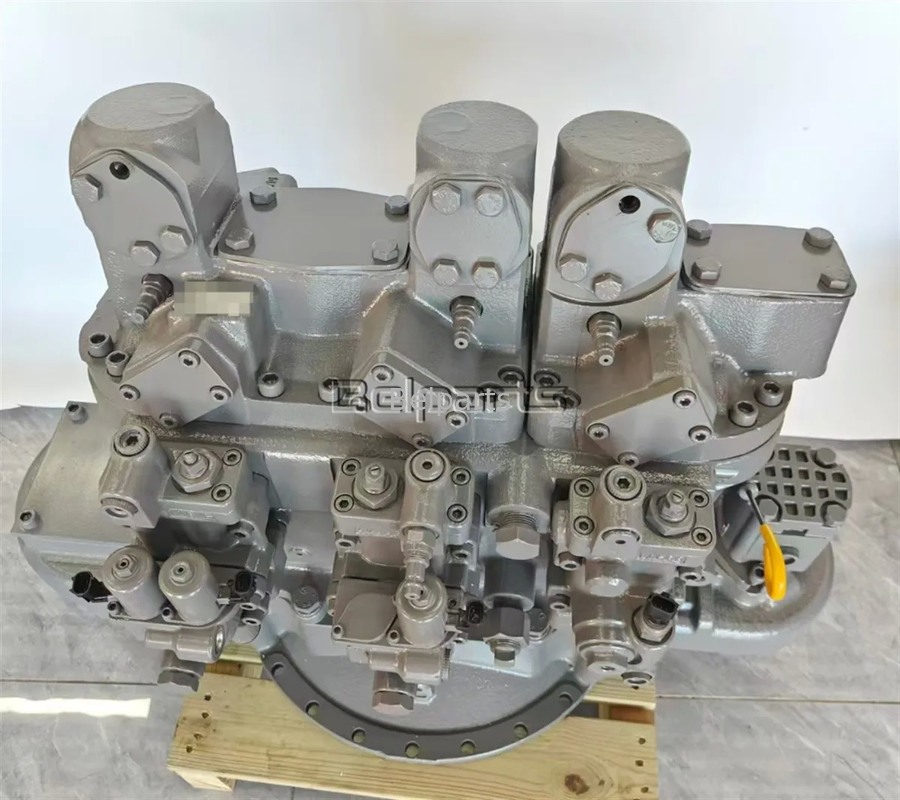

| Application | Excavator, digger |
|---|---|
| Part Name | Hydraulic Main Pump |
| Model | ZX250LC-5 |
| Part Number | 9191165 9195236 HPV118JX-25A |
| Warranty | 6-12 months |
| Payment Term | T/T, Trade Assurance, Paypal and etc. |
| Brand | belparts |
| 64 | M340816 | . BOLT; SOCKET | 2 | |
| 68 | 4265372 | . SENSOR; REVOL. | 1 | |
| 69 | 4306888 | . O-RING | 1 | |
| 70 | A590106 | . WASHER; PLANE | 1 | |
| 71 | M340616 | . BOLT; SOCKET | 1 | |
| 86 | 4234782 | . PLUG | 1 | |
| 87 | 4092534 | . PLUG | 1 | |
| 87A | 4509180 | .. O-RING | 1 | |
| 103 | . PUMP; UNIT | 1 | ||
| 112 | . NAME-PLATE | 1 | ||
| 113 | M492564 | . SCREW; DRIVE | 2 | |
| 120 | 4276918 | . PUMP; GEAR | 1 | |
| 121 | M341030 | . BOLT; SOCKET | 2 | |
| 122 | 984054 | . WASHER; SPRING | 2 | |
| 123 | 4114402 | . WASHER | 2 | |
| 127 | 4369148 | . PIPE; E | 1 | |
| 130 | 4293950 | . ELBOW; S | 2 | |
| 130A | 957366 | .. O-RING | 1 | |
| 133 | 4416605 | . COUPLING | 1 | |
| 133A | 4463992 | .. HUB | 1 | |
| 133B | 4334899 | .. SCREW; SET | 2 | |
| 133C | 4101345 | .. PIN; SPRING | 4 | |
| 133D | 4463993 | .. INSERT | 4 | |
| 133E | 4334894 | .. BOLT; SOCKET | 4 | |
| 133F | 4463994 | .. ELEMENT | 1 | |
| 136 | 8058352 | . PACKING | 1 | |
| 137 | J901645 | . BOLT | 6 | |
| 138 | A590916 | . WASHER; SPRING | 6 | |
| 200 | 4451036 | KIT; SEAL | 1 |
Excavator hydraulic pumps are mostly high-pressure variable displacement pumps. In principle, the output flow is adjusted in real time through a variable mechanism (such as an electric proportional valve, hydraulic feedback valve): when the excavator performs heavy-load actions (such as digging hard rock), the variable mechanism reduces the flow to increase the system pressure, ensuring sufficient digging force; when performing light-load actions (such as rapid boom lifting), it increases the flow to speed up the action, realizing dynamic matching of "pressure-flow". In terms of function, its high-pressure characteristic (usually working pressure up to 30-40MPa) can meet the high-intensity operation needs of excavators such as crushing and heavy-load digging. At the same time, through adaptive flow adjustment, it reduces engine energy consumption, reduces heat generation of the hydraulic system, and extends the service life of the entire machine.
