起源の場所:
中国
ブランド名:
Belparts
証明:
CE
モデル番号:
EX200 EX220 EX200-1 EX200LC EX220LC
| Application | Excavator |
|---|---|

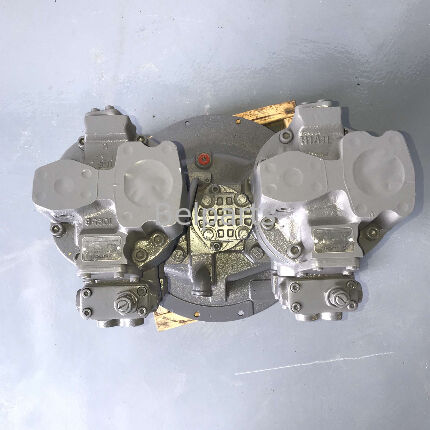

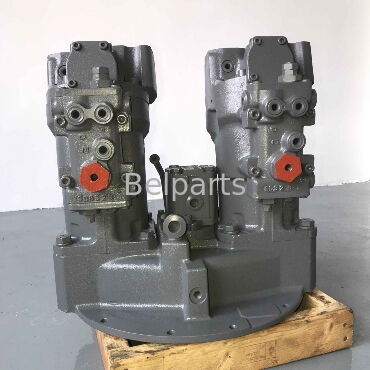

| Part name | Hydraulic Piston pump |
| Machine model | EX200 EX220 EX200-1 EX200LC EX220LC |
| Part number | 9065880 9065881 9077427 9065879 |
| Type | HPV116C HPV116 RH25A |
| Warranty | 6 months |
| Delivery time | 3-7 Days |
| Shipment | Express/freight/sea/train |
| Quality | Original Brand Rebuild |
| MOQ | 1 Piece |
| Payment term | T/T, Trade Assurance, Paypal and etc |
| Category | Construction Machinery Part |
| # | Part No | Part Name | Qty. |
|---|---|---|---|
| 01~73 | 9065879 | PUMP; DOUBLE ASS'Y | 1 |
| 01 | 1009491 | . CASING; GEAR | 1 |
| 01 | 1013616 | . CASING; GEAR | 1 |
| 04 | 3033590 | . GEAR; CENTER | 1 |
| 05 | 3035589 | . SHAFT; CENTER | 1 |
| 05 | 3038090 | . SHAFT; CENTER | 1 |
| 06 | 3033592 | . SLEEVE | 1 |
| 08 | 4023596 | . BRG.; BALL | 1 |
| 09 | 4198787 | . BRG.; BALL | 1 |
| 10 | 4191219 | . RING; RETAINING | 1 |
| 11 | 4179833 | . SEAL; OIL | 1 |
| 12 | 3033593 | . COVER; T.MISSION | 1 |
| 13 | 4179834 | . O-RING | 1 |
| 14 | 991733 | . RING; RETAINING | 1 |
| 17 | 4181700 | . PUMP; GEAR | 1 |
| 19 | M341028 | . BOLT; SOCKET | 2 |
| 20 | 984054 | . WASHER; SPRING | 2 |
| 21 | A590110 | . WASHER | 2 |
| 23 | 4191974 | . ADAPTER | 1 |
| 23A | 4506418 | .. O-RING | 1 |
| 28 | 3034465 | . GEAR; DRIVE | 2 |
| 29 | 991345 | . RING; RETAINING | 2 |
| 32 | 9065880 | . PUMP; SINGLE | 2 |
| 32A | 9070528 | .. REGULATOR | 1 |
| 35 | M211645 | . BOLT | 8 |
| 36 | 4126090 | . WASHER; SEAL | 4 |
| 37 | A590916 | . WASHER; SPRING | 4 |
| 41 | 94-0649 | . ELBOW | 1 |
| 42 | J728684 | . REDUCER | 1 |
| 43 | 4511984 | . PLUG | 1 |
| 45 | 4196389 | . GAUGE; LEVEL | 1 |
| 45 | 4196389 | . GAUGE; LEVEL | |
| 45A | 4509180 | .. O-RING | 1 |
| 45 | 4236198 | . GAUGE; LEVEL | 1 |
| 45 | 4242263 | . GAUGE; LEVEL | 1 |
| 46 | 4236328 | . PIPE; GUIDE | 1 |
| 46A | 4509180 | .. O-RING | 1 |
| 46 | 4242262 | . PIPE; GUIDE | 1 |
| 48 | 4092534 | . PLUG | 1 |
| 48A | 4509180 | .. O-RING | 1 |
| 50 | 4184689 | . PIPE | 2 |
| 51 | 4203485 | . FITTING; PIPE | 1 |
| 51A | 957366 | .. O-RING | 1 |
| 52 | 4181053 | . PIPE | 1 |
| 53 | 4179837 | . FITTING; PIPE | 5 |
| 53A | 957366 | .. O-RING | 1 |
| 55 | 3033595 | . PIPE | 1 |
| 56 | 3036487 | . PIPE | 1 |
| 57 | 4118499 | . FITTING; PIPE | 4 |
| 57A | 957366 | .. O-RING | 1 |
| 59 | 4179843 | . CLAMP | 2 |
| 60 | J900828 | . BOLT | 1 |
| 61 | M500807 | . NUT | 1 |
| 62 | A590908 | . WASHER; SPRING | 1 |
| 64 | M340816 | . BOLT; SOCKET | 2 |
| 65 | 4092149 | . BOLT; EYE | 1 |
| 66 | 4243160 | . PACKING | 1 |
| 67 | 3037596 | . NAME-PLATE | 1 |
| 68 | M492564 | . SCREW; DRIVE | 2 |
| 73 | 4118705 | . COUPLING ASS'Y | 1 |
| 73A | 4183171 | .. HUB | 1 |
| 73B | 4183170 | .. SCREW; SET | 2 |
| 73C | 4101345 | .. PIN; SPRING | 12 |
| 73D | 4183167 | .. INSERT | 4 |
| 73E | 4183169 | .. BOLT; SOCKET | 4 |
| 73F | 4183166 | .. INSERT | 4 |
| 73G | 4183168 | .. BOLT; SOCKET | 4 |
| 73H | 4183165 | .. COUPLING | 1 |
| 74 | J901040 | BOLT | 3 |
| 75 | 4114402 | WASHER | 3 |
| 76 | A590910 | WASHER; SPRING | 8 |
| 77 | J901030 | BOLT | 5 |
