起源の場所:
中国
ブランド名:
Belparts
証明:
CE
モデル番号:
ZX200-3 ZX210-3 ZX230-3 ZX240-3 ZX250-3
| Application | Excavator |
|---|---|

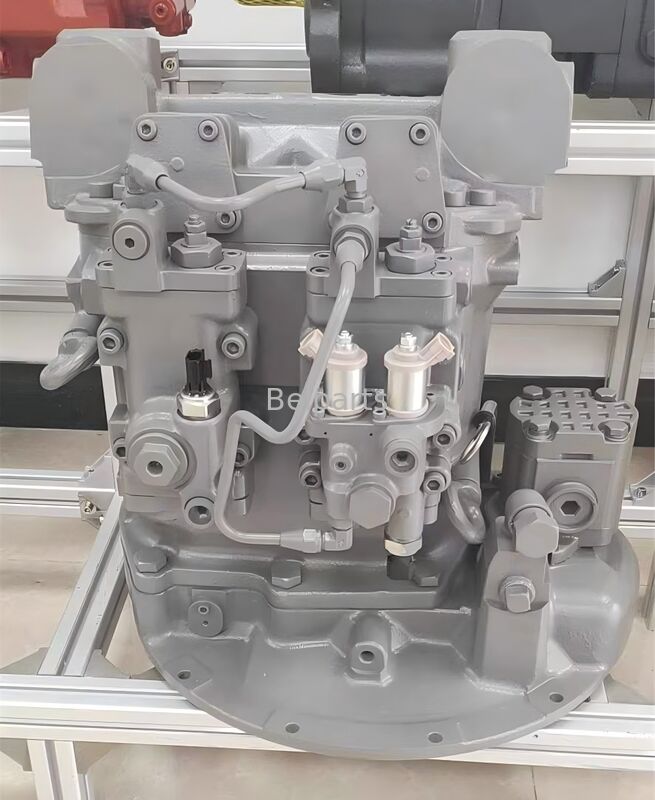

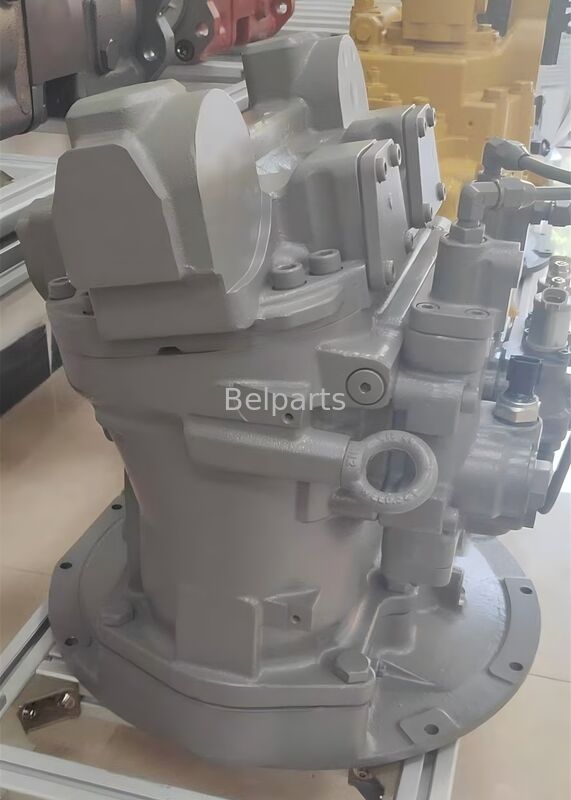

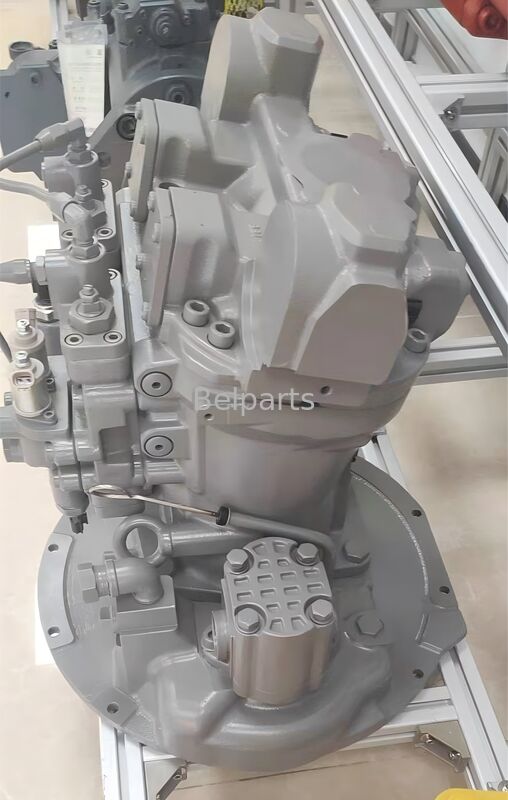

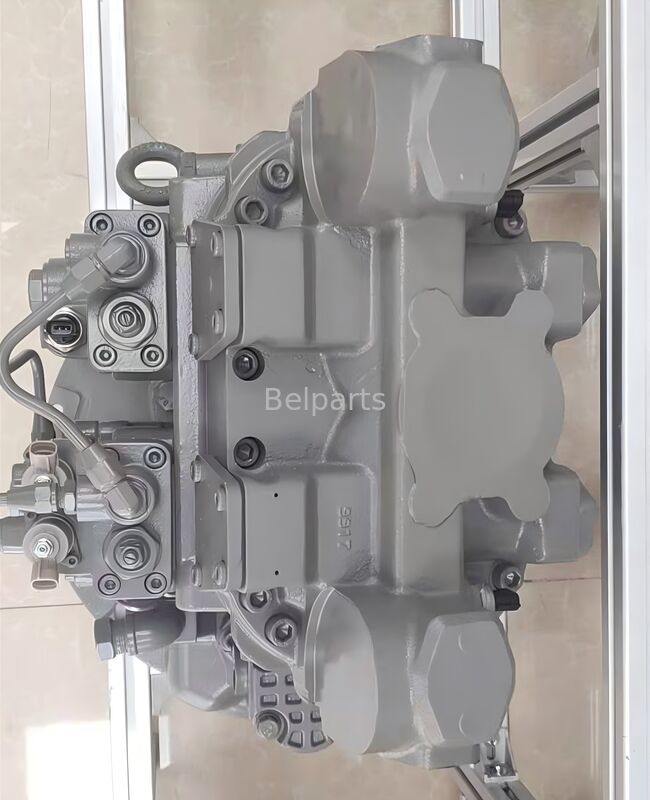

| Part name | Hydraulic Piston pump |
| Machine model | ZX200-3 ZX210-3 ZX230-3 ZX240-3 ZX250-3 |
| Part number | 9262319 9262320 9191165 9195236 9256125 9257348 |
| Type | HPV118 |
| Warranty | 12 months |
| Delivery time | 3-7 Days |
| Shipment | Express/freight/sea/train |
| Quality | Made In China |
| MOQ | 1 Piece |
| Payment term | T/T, Trade Assurance, Paypal and etc |
| Category | Construction Machinery Part |

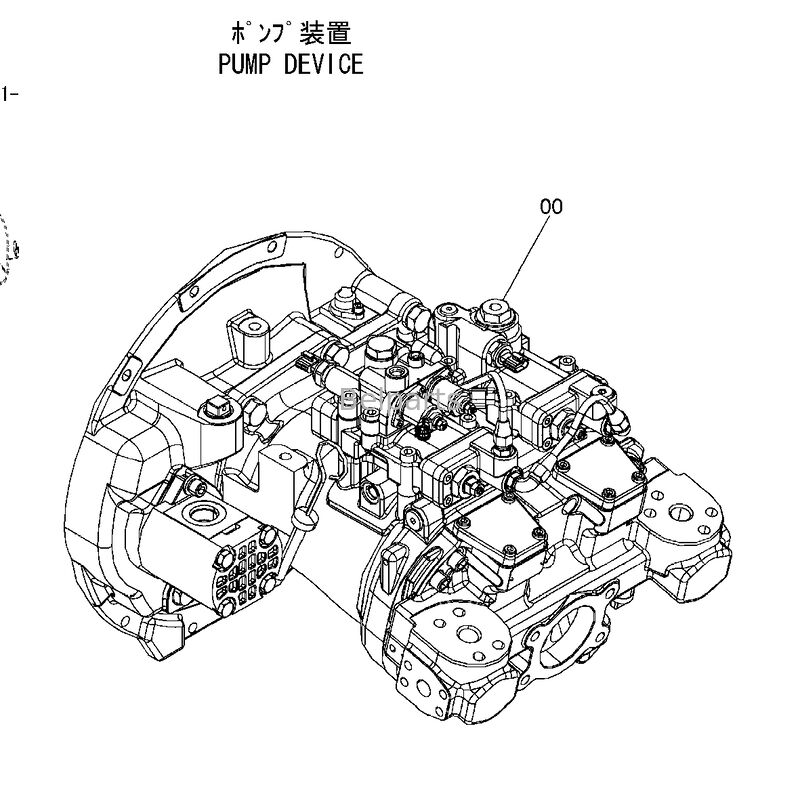

| # | Part No | Part Name | Qty. |
|---|---|---|---|
| 9262319 | PUMP DEVICE (FOR ASSEMBLY OF MACHINE) | 1 | |
| (9262320) | PUMP DEVICE (FOR TRANSPORTATION) | 1 | |
| 01 | 1033158 | . CASING; GEAR | 1 |
| 05 | 3063840 | . GEAR; PILOT | 1 |
| 06 | 3055594 | . SHAFT; GEAR | 1 |
| 10 | 958740 | . BRG.; BALL | 2 |
| 11 | 962002 | . RING; RETAINING | 1 |
| 12 | 991725 | . RING; RETAINING | 1 |
| 34 | 4099290 | . PIN; SPRING | 2 |
| 43 | 4310055 | . SEAL; OIL | 1 |
| 44 | 991725 | . RING; RETAINING | 1 |
| 61 | 4438059 | . GAUGE; LEVEL | 1 |
| 62 | 9743977 | . PIPE; GAUGE | 1 |
| 63 | 9742779 | . PACKING | 1 |
| 64 | M340816 | . BOLT; SOCKET | 2 |
| 83 | 94-0649 | . ELBOW | 1 |
| 84 | 4645330 | . PLUG | 1 |
| 86 | 4234782 | . PLUG | 1 |
| 87 | 4092534 | . PLUG | 1 |
| 87A | 4509180 | .. O-RING | 1 |
| 103 | . PUMP; UNIT | 1 | |
| 112 | . NAME-PLATE | 1 | |
| 113 | M492564 | . SCREW; DRIVE | 2 |
| 117 | 9256847 | . PUMP; REGULATOR (1) | 1 |
| 118 | 9256848 | . PUMP; REGULATOR (2) | 1 |
| 119 | 9218005 | . PUMP; GEAR | 1 |
| 121 | M341030 | . BOLT; SOCKET | 2 |
| 122 | 984054 | . WASHER; SPRING | 2 |
| 123 | 4114402 | . WASHER | 2 |
| 127 | 4631943 | . PIPE | 1 |
| 130 | 4293950 | . ELBOW; S | 2 |
| 130A | 957366 | .. O-RING | 1 |
| 133 | 4641504 | . COUPLING | 1 |
| 133A | 4463992 | .. HUB | 1 |
| 133B | 4334899 | .. SCREW; SET | 2 |
| 133C | 4101345 | .. PIN; SPRING | 4 |
| 133D | 4463993 | .. INSERT | 4 |
| 133E | 4334894 | .. BOLT; SOCKET | 4 |
| 133F | 4654760 | .. ELEMENT | 1 |
| 136 | 8058352 | . PACKING | 1 |
| 137 | J901645 | . BOLT | 6 |
| 138 | A590916 | . WASHER; SPRING | 6 |
| 200 | 4451036 | KIT; SEAL | 1 |
