起源の場所:
中国
ブランド名:
Belparts
証明:
CE
モデル番号:
コベルコ SK17SR-3 17SR-3 ニューホランド E18SR E18B
| Application | Excavator |
|---|---|

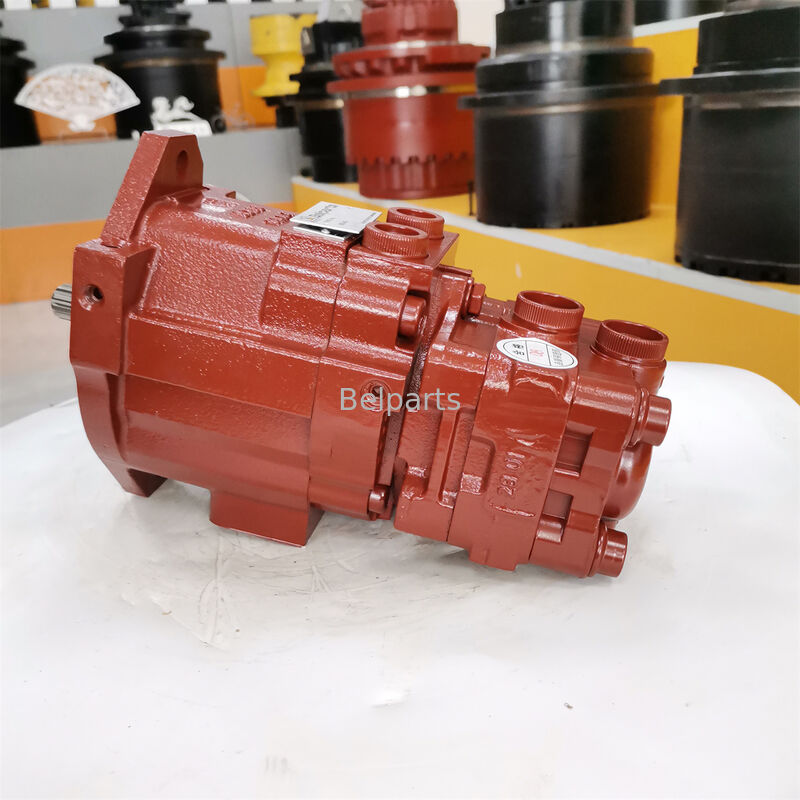

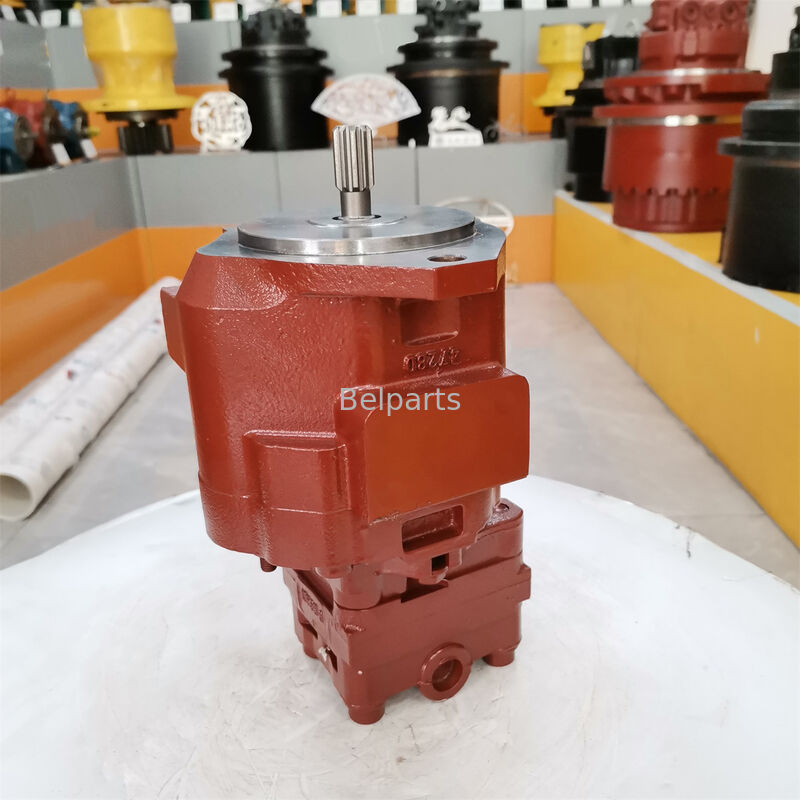

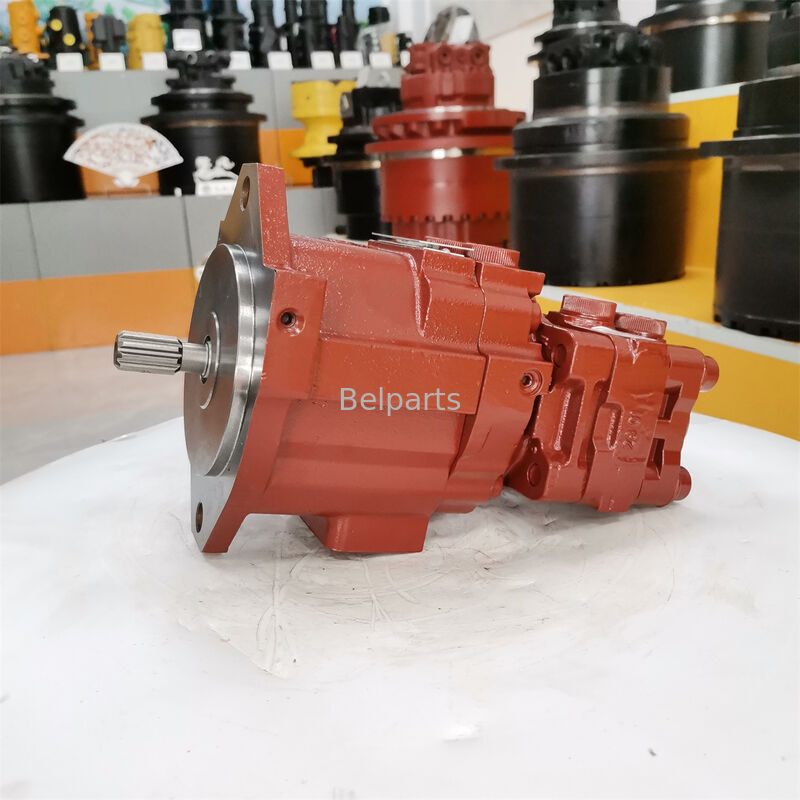

| Part Name | Hydraulic Piston Pump |
| Model | CX17B |
| Part Number | PU10V00014F1 |
| Engine | PU02P00018F1 |
| Type | PVD-00B-15P-5AG3 |
| Warranty | 12 Months |
| Delivery Time | 3-7 Days |
| Shipment | Express/Freight/Sea/Train |
| Quality | Made in China High Quality |
| MOQ | 1 Piece |
| Payment Term | T/T, Trade Assurance, Paypal and etc |
| Category | Construction Machinery Part |
| Pos. | Part No | Qty | Parts Name |
|---|---|---|---|
| 1 | 4668462 | 1 | PUMP;PISTON |
| 2 | +++++++ | 1 | BODY |
| 3 | +++++++ | 1 | BODY |
| 4 | 1184901 | 1 | SHAFT |
| 5 | +++++++ | 1 | CYL. |
| 6 | +++++++ | 1 | PLATE |
| 7 | +++++++ | 1 | PISTON |
| 8 | +++++++ | 1 | SHOE |
| 9 | +++++++ | 1 | HOLDER |
| 10 | +++++++ | 1 | HOLDER |
| 11 | 1184902 | 1 | PLATE;SWASH |
| 12 | 1184903 | 1 | PISTON |
| 13 | 1184904 | 1 | PLUG |
| 14 | 1184905 | 1 | HOLDER |
| 15 | 1184906 | 1 | HOLDER;SPRING |
| 16 | 1184907 | 1 | PLATE;THRUST |
| 17 | +++++++ | 2 | RETAINER |
| 18 | +++++++ | 3 | NEEDLE |
| 19 | 0473906 | 2 | PIN |
| 20 | 0630621 | 2 | PIN |
| 21 | 0429816 | 1 | PIN |
| 22 | +++++++ | 1 | SPRING |
| 23 | 1184908 | 1 | SPRING |
| 24 | 1184909 | 1 | SPRING |
| 25 | 1184910 | 2 | BUSHING |
| 26 | 1184911 | 1 | BRG.;BALL |
| 27 | +++++++ | 1 | BRG.;NEEDLE |
| 28 | 988850 | 1 | RING;RETAINING |
| 29 | 1184912 | 2 | RING;RETAINING |
| 30 | +++++++ | 1 | RING;RETAINING |
| 31 | 0630617 | 1 | ORIFICE |
| 32 | 0429825 | 1 | SCREW |
| 33 | 1184913 | 8 | BOLT;SOCKET |
| 34 | 1184914 | 4 | BOLT;SOCKET |
| 35 | 0664917 | 1 | PLUG |
| 36 | 0630505 | 3 | PLUG |
| 37 | 1184915 | 1 | SEAL;OIL |
| 38 | +++++++ | 7 | PLUG |
| 39 | 4506408 | 4 | O-RING |
| 40 | 957366 | 3 | O-RING |
| 41 | 984614 | 1 | O-RING |
| 42 | 4125485 | 1 | O-RING |
| 43 | A811050 | 1 | O-RING |
| 44 | A811075 | 1 | O-RING |
| 45 | A811125 | 1 | O-RING |
| 46 | +++++++ | 1 | FILTER |
| 47 | 4693312 | 1 | VALVE |
| 48 | 4693315 | 1 | PUMP;GEAR |
| 49 | 0749305 | 1 | COUPLING |
| 50 | 0971003 | 1 | COLLAR |
| 51 | 0749306 | 2 | BOLT |
| 52 | 0749307 | 2 | WASHER |
| 53 | 4506407 | 1 | O-RING |
| 54 | 4506408 | 1 | O-RING |
| 55 | A811055 | 1 | O-RING |
| 90 | 4693313 | 1 | KIT;CYL. |
| 100 | 4693314 | 1 | KIT;SEAL |
