起源の場所:
中国
ブランド名:
Belparts
証明:
CE
モデル番号:
SK13SR SK15SR SK17SR
| Application | Excavator |
|---|---|

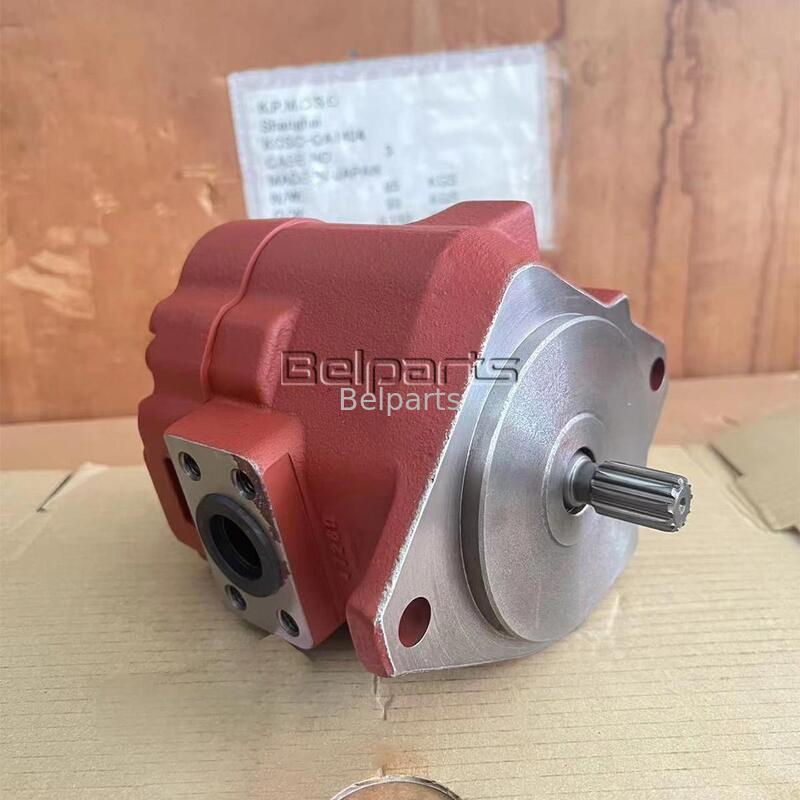

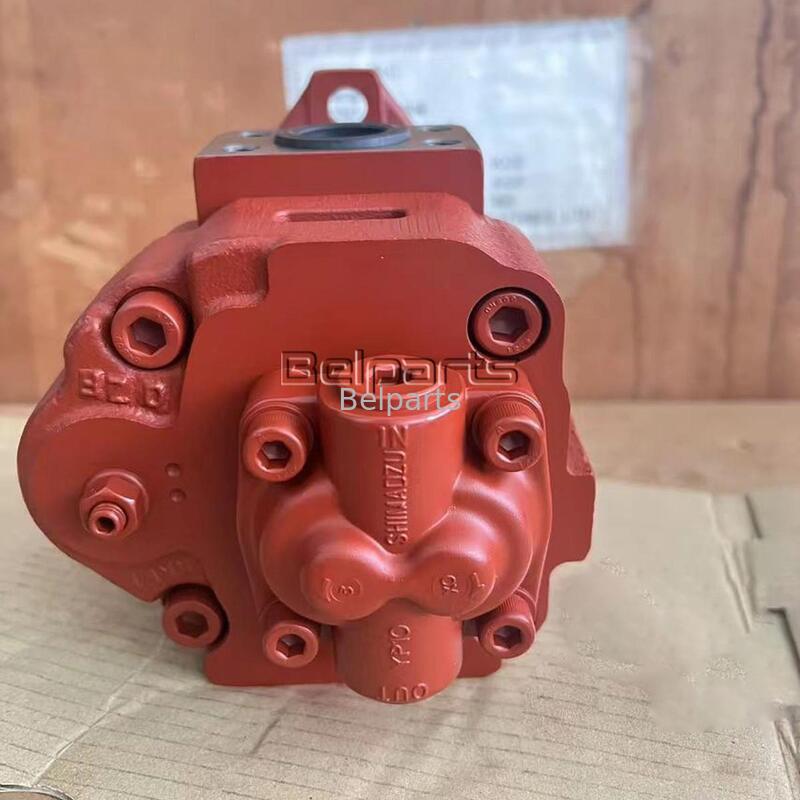

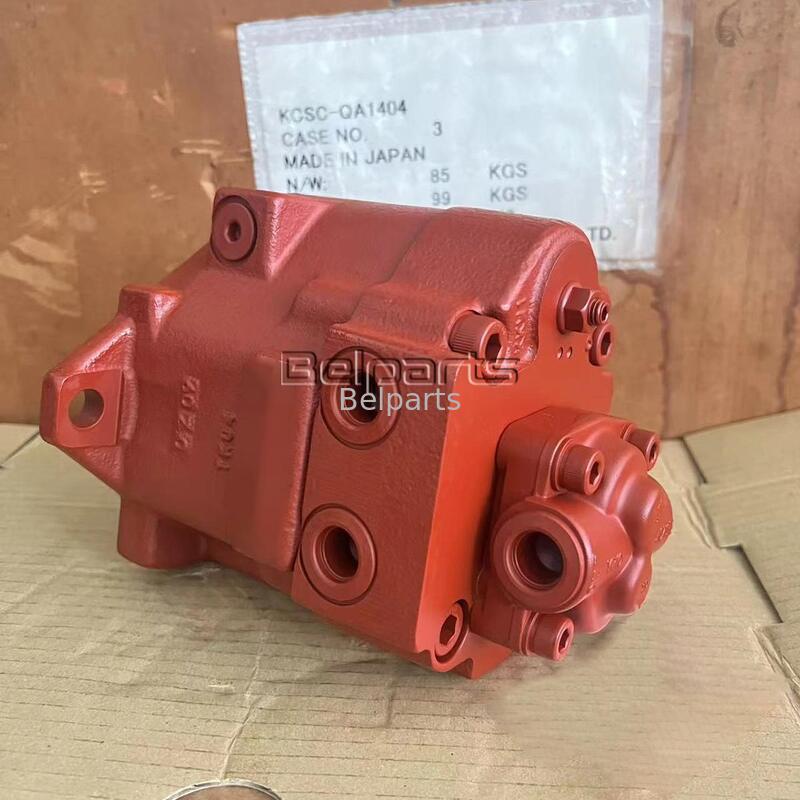

| Part name | Hydraulic Piston pump |
| Model | SK13SR SK15SR SK17SR |
| Type | PVD-00B-15-3-5658A |
| Part Number | PE10V00001F1 PU10V00002F1 |
| Warranty | 12 months |
| Delivery time | 3-7 Days |
| Shipment | Express/freight/sea/train |
| Quality | Original Brand New |
| MOQ | 1 Piece |
| Payment term | T/T, Trade Assurance, Paypal and etc |
| Category | Construction Machinery Part |
| # | Part No. | Description | Qty |
|---|---|---|---|
| . | PA10V00001R200 | REPAIR KIT; (PISTON ASSY),CONSISTS OF REF 6 (1), 7 (1) | 1 |
| . | PA10V00001R100 | REPAIR KIT; (BARREL CYLINDER KIT),CONSISTS OF REF 4(1), 5(1), 6(10), 7(10), 8(1), 9(1), 11(3), 14(1), 24(2), 35(1) | 1 |
| . | PA10V00001R400 | REPAIR KIT; (PUMP,GEAR KIT),CONSISTS OF REF 65(1), 67(2), 68(4), 70(4), 73(2) | 1 |
| . | PE10V00001F1 | PUMP,7.4 CC; ASSY | 1 |
| . | PA10V00001R300 | REPAIR KIT; (PUMP,GEAR KIT), CONSISTS OF REF 13(1), 32(1) ,39(1) ,64(1) ,62(1),71(1) | 1 |
| 1 | ---- | NOT SOLD SEPARAT; BODY (S) | 1 |
| 2 | ---- | NOT SOLD SEPARAT; BODY (H) | 1 |
| 3 | PA10V00001S003 | SHAFT | 1 |
| 4 | PA10V00001S004 | BARREL | 1 |
| 5 | PA10V00001S005 | PLATE; VALVE | 1 |
| 6 | PA10V00001S006 | PISTON | 10 |
| 7 | PA10V00001S007 | TRACK SHOE | 10 |
| 8 | PA10V00001S008 | HOLDER | 1 |
| 9 | PA10V00001S009 | HOLDER; BARREL | 1 |
| 10 | PA10V00001S010 | PLATE | 1 |
| 11 | PA10V00001S011 | NEEDLE | 3 |
| 12 | PV10V00001S012 | PIN | 2 |
| 13 | PA10V00001S013 | PACKING | 1 |
| 14 | PA10V00001S014 | SPRING; (C) | 1 |
| 15 | PE10V00001S015 | SPRING; (T) | 1 |
| 18 | PA10V00001S018 | HOLDER; SPRING | 1 |
| 19 | PA10V00001S019 | SPRING; GUIDE | 1 |
| 20 | PV10V00001S020 | PIN | 2 |
| 24 | PA10V00001S024 | RETAINER | 1 |
| 25 | PE10V00001S025 | PIN; (A) | 1 |
| 30 | R25P0009D8 | BALL BEARING,20mm ID x 42mm OD x 12mm W | 1 |
| 31 | PA10V00001S031 | BEARING; NEEDLE | 1 |
| 32 | PA10V00001S032 | GASKET | 1 |
| 33 | PA10V00001S033 | WASHER | 4 |
| 34 | PA10V00001S034 | SNAP RING | 1 |
| 35 | ZR26X02800 | RING; SNAP | 1 |
| 39 | ZD12P01100 | O-RING; ID 10.8mm x OD 13.2mm | 1 |
| 44 | ZS23C10050 | SCREW,Hex Socket Head, M10 x 50mm; M10x1.50x50mm | 4 |
| 51 | PA10V00001S051 | PLUG | 1 |
| 53 | PA10V00001S053 | PLUG | 1 |
| 54 | ZD12P01800 | O-RING; ID 17.8mm x OD 20.2mm | 1 |
| 56 | PR15V00004S088 | LINCH PIN | 1 |
| 60 | PR10V00002S060 | SCREW | 1 |
| 61 | YR10V00004S062 | NUT | 1 |
| 62 | PR10V00002S062 | WASHER; SEAL | 1 |
| 65 | PA10V00001S065 | HYDRAULIC PUMP | 1 |
| 66 | PA10V00001S066 | FLEXIBLE JOINT | 1 |
| 67 | PL10V00001S056 | BALL; STEEL | 2 |
| 68 | PA10V00001S068 | BOLT (STEP) | 4 |
| 69 | ---- | NOT SOLD SEPARAT; BUSHING | 1 |
| 70 | PA10V00001S070 | WASHER | 4 |
| 71 | PA10V00001S071 | O-RING | 1 |
| 73 | EZ10V00002S019 | GASKET | 2 |
