起源の場所:
中国
ブランド名:
Belparts
証明:
CE
モデル番号:
PC120-6 PC120-6Z PC130-6
|
Application
|
Excavator
|
|
Part name
|

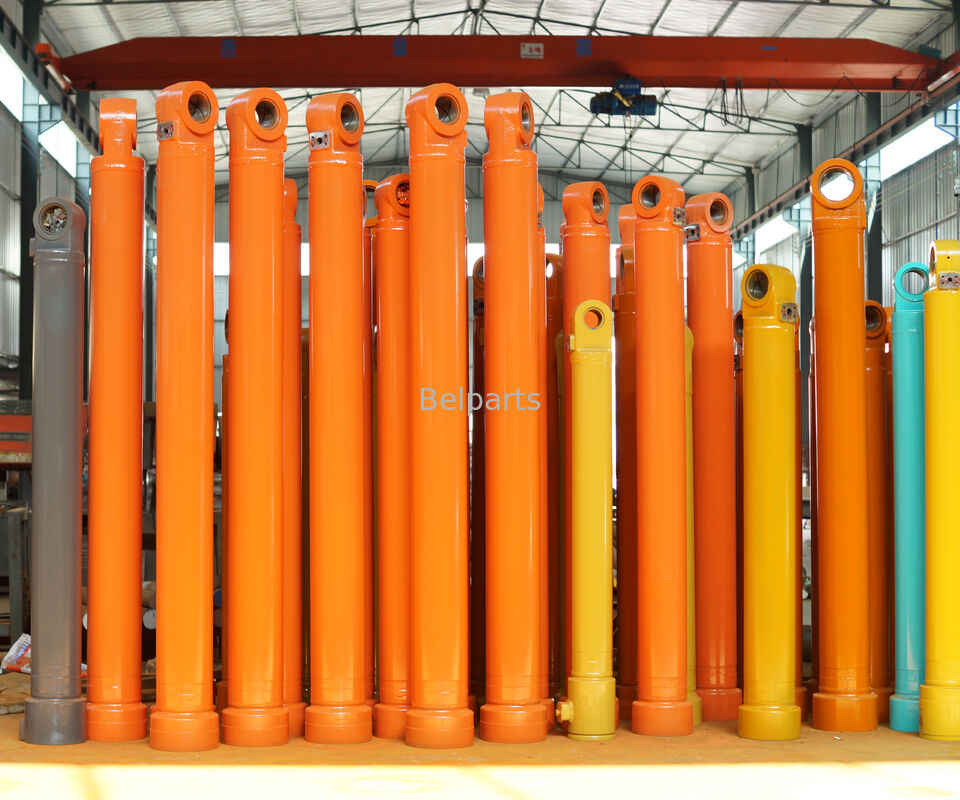

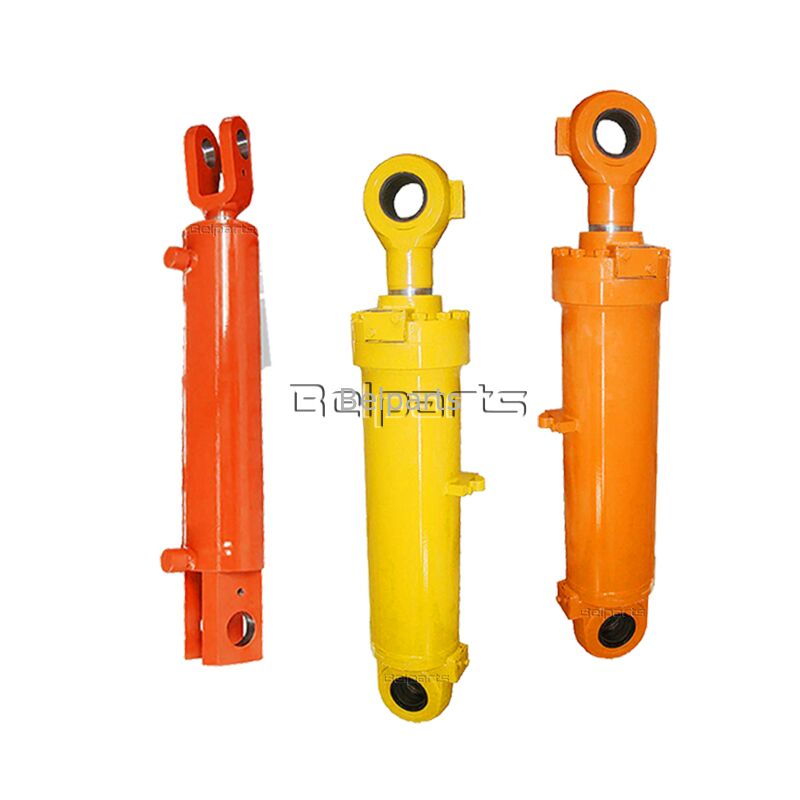

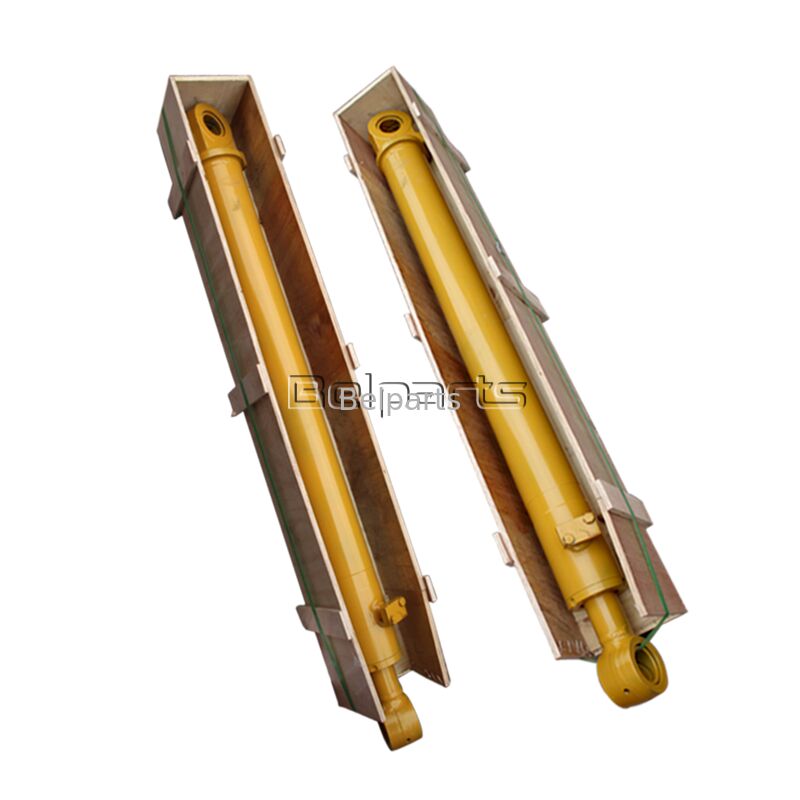

Hydraulic Arm Cylinder
|
|
Suitable for
|
PC120-6 PC120-6Z PC130-6
|
| Part Number | 203-63-X2322 203-63-X2321 |
| Type | 4D102 |
|
Warranty
|
12 months
|
|
Delivery time
|
3-7 Days
|
|
Shipment
|
Express/freight/sea/train
|
|
Quality
|
Aftermarket High Quality
|
|
MOQ
|
1 Piece
|
|
Payment term
|
T/T, Trade Assurance, Paypal and et
|
| # | Part No. | Description | Qty |
|---|---|---|---|
| G1 | (203-63-X2322) | CYLINDER GROUP,(SEE FIG.Y1620-11A0A) | 1 |
| G1 | (203-63-X2321) | CYLINDER GROUP,(SEE FIG.Y1620-11A0) | 1 |
| ---- | ==================== | ||
| 1 | 203-63-02322 | CYLINDER ASS'Y,ARM | 1 |
| 1 | 203-63-02321 | CYLINDER ASS'Y,ARM | 1 |
| 1 | 203-63-64342 | CYLINDER,ARM | 1 |
| 1 | 203-63-64341 | CYLINDER,ARM | 1 |
| 2 | 707-76-70240 | Bushing | 1 |
| 3 | 07145-00070 | SEAL,DUST? PISTON ROD | 2 |
| 4 | 707-71-32510 | COLLAR | 1 |
| 5 | 07000-15110 | O-RING (KIT) | 1 |
| 6 | 07001-05110 | RING,BACK-UP (KIT) | 2 |
| 7 | 707-27-11670 | HEAD,CYLINDER (PAINT(2)) | 1 |
| 8 | 707-52-90500 | Bushing | 1 |
| 9 | 707-51-75030 | PACKING,ROD (KIT) | 1 |
| 10 | 707-51-75630 | RING,BUFFER (KIT) | 1 |
| 11 | 07000-15110 | O-RING (KIT) | 1 |
| 12 | 07001-05110 | RING,BACK-UP (KIT) | 1 |
| 13 | 144-63-94170 | SEAL,DUST (KIT) | 1 |
| 14 | 07179-13089 | RING, SNAP | 1 |
| 15 | 01010-81670 | BOLT,(WITH WEAR GUARD) | 12 |
| 16 | 01643-51645 | WASHER, SPRING | 12 |
| 17 | 203-63-64320 | ROD,PISTON | 1 |
| 18 | 707-71-60200 | PLUNGER | 1 |
| 19 | 04260-00635 | BOWL, CHECK VALVE | 11 |
| 20 | 707-71-91270 | Cap | 1 |
| 21 | 707-76-70240 | Bushing | 1 |
| 22 | 07145-00070 | SEAL,DUST? PISTON ROD | 2 |
| 23 | 707-71-60830 | PLUNGER | 1 |
| 24 | 707-40-11470 | Retainer | 1 |
| 25 | 707-36-11510 | Piston | 1 |
| 26 | 707-44-11280 | RING,(Y1620-01A1-19) | 1 |
| 27 | 707-39-11510 | RING,(Y1620-01A1-20) | 2 |
| 28 | 707-44-11920 | Ring | 2 |
| 29 | 07165-15860 | NUT,NYLON | 1 |
| 30 | 203-63-64371 | Tube | 1 |
| 31 | 707-87-11450 | Elbow | 1 |
| 32 | 07000-13025 | O-RING,(SEE FIG. H0311-01A0-30) | 2 |
| 33 | 01010-50850 | BOLT (KIT) | 8 |
| 34 | 01643-50823 | WASHER,(FOR SHIPPING) | 8 |
| 35 | 707-88-95350 | BAND | 1 |
| 36 | 707-88-95502 | Bracket | 1 |
| 37 | 707-88-95360 | BAND (PAINT(2)) | 1 |
| 38 | 707-88-95510 | BRACKET (PAINT(2)) | 1 |
| 39 | 01010-51035 | BOLT,(FOR QUICK SHIFT) (MITSUBISHI) | 2 |
| 39 | 01010-51035 | BOLT,(FOR QUICK SHIFT) (MITSUBISHI) | 4 |
| 40 | 01643-31032 | WASHER,(WITH AUTO EMERGENCY STEERING) | 2 |
| 40 | 01643-51032 | WASHER, (WITHOUT EMERGENCY STEERING) | 4 |
| 41 | 07283-22236 | U-BOLT, TUBE CLAMP | 1 |
| 41 | 07283-22236 | U-BOLT, TUBE CLAMP | 2 |
| 42 | 01599-01011 | NUT,(WITH UNDER MIRROR) | 2 |
| 42 | 01599-01011 | NUT,(WITH UNDER MIRROR) | 4 |
| 43 | 01643-31032 | WASHER,(WITH AUTO EMERGENCY STEERING) | 2 |
| 43 | 01643-31032 | WASHER,(WITH AUTO EMERGENCY STEERING) | 4 |
| ---- | ==================== | ||
| K | 707-99-44200 | SERVICE KIT,ARM CYLINDER | 1 |
More Branded Accessories are Available
| Hydraulic Parts | Hydraulic Pump | Final Drive | Travel Reduction |
| Swing Motor | Swing Reduction | Control Valve | Gear Parts |
| Slew Bearing | Engine Assembly | Hydraulic Cylinder | ECU |
Guangzhou Belparts Engineering Machinery Limited (Est. 2013) is a premier supplier of high-performance hydraulic parts for global excavator brands. We provide a one-stop shop for mission-critical components with a focus on quality, reliability, and global reach.
Core Product Specialization
We stock a massive inventory for brands like Hitachi, Komatsu, VoIvo, CAT, Hyundai, Kobelco, Kubota, Yanmar, JCB, Deere, Sany, Case, XCMG and Doosan:
Why Choose Us?
Four-Tier Quality Excellence
We offer the most comprehensive range of quality options in the industry:
Process Features
About Factory
Belparts have a large workshop forexcavator parts producing, from materialcutting, wielding, heating treating,assembling, debugging,painting, testing,every part we will confirm before leavingthe factory.
FAQ
1.If I only know the excavator model, but can not offer parts No., what should I do ?
If possible, you can send us pictures of old products, nameplate or the size for reference.
2.What is the warranty of the parts after I purchased hydraulic axial piston pump & motor spare parts?
The warranty is 6/12 Months based on the item details.
3.How can I pay the order?
We can receive payment through T/T, Western Union, Paypal(for small amount),Ali trade assurance.
4.When will get the items after I place order?
Once your payment is confirmed, we will arrange the goods within 24 hours; if not in stock , we will inform you before placing the order.
5.How can I do if there is something wrong with the items?
First of all , I have confidence in the quality of our products ,if you really found something wrong ,pls provide pictures for us
and we will check. After it is confirmed, pls return to us , we will offer the correct item.
6.What is your main products ?
We are specialized in the excavator spare parts, such as travel motor gearbox/ass’y/parts, swing gearbox/ass’y/motor/parts,
hydraulic pump assy/parts and gear parts. If you need other excavator parts, we also can supply as your requirements.
