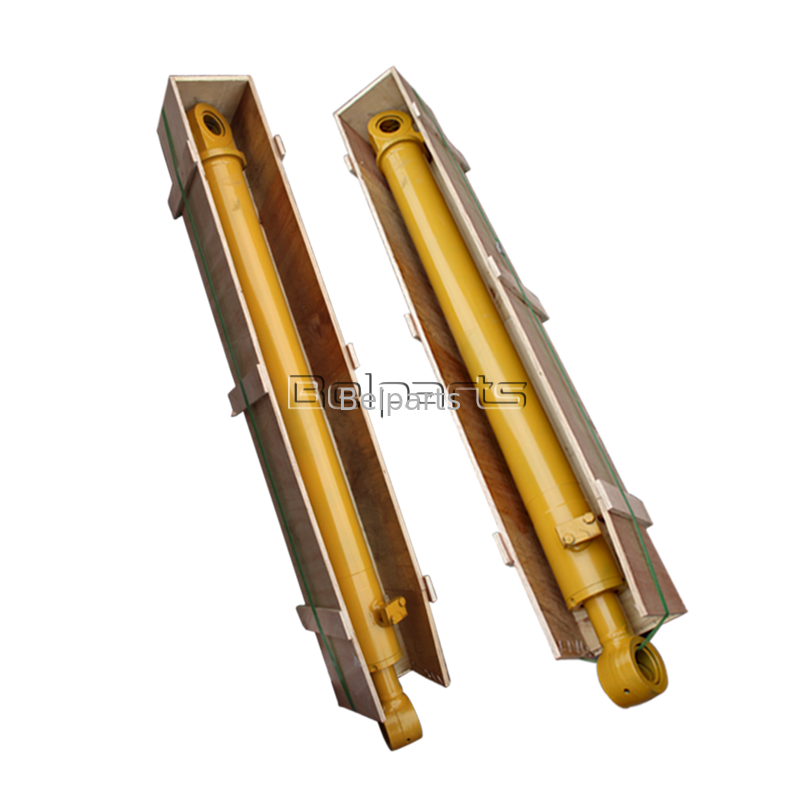

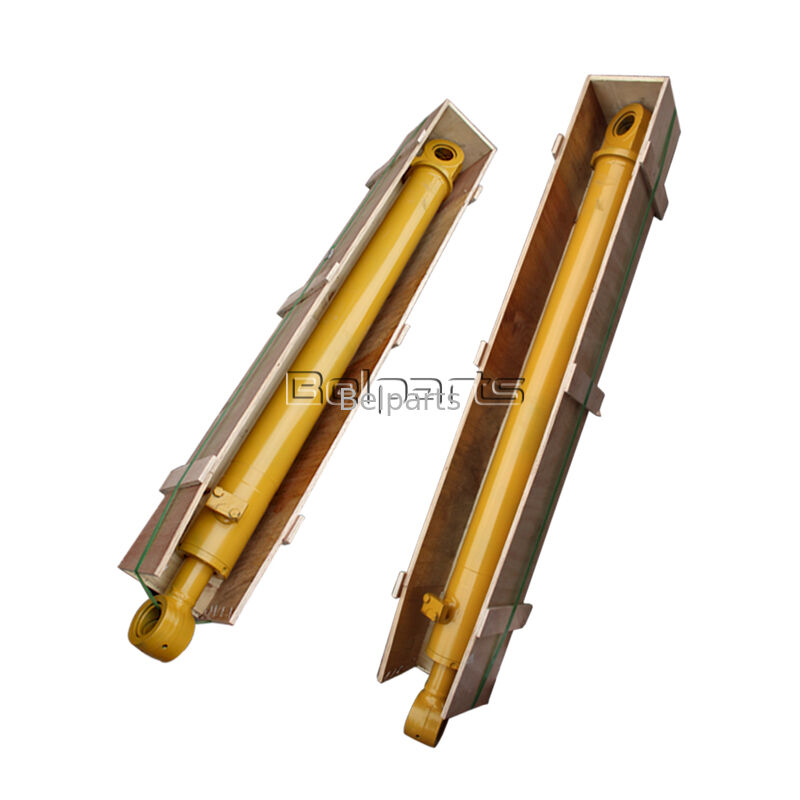

Premium aftermarket left/driver‑side hydraulic boom cylinder (PN 9261586G) for John Deere 240D and 240D LC excavators. Controls boom lift/lower, delivering strong, stable force for digging, loading, grading, and general construction. Exact OEM dimensions and porting for bolt‑on installation without modifications. High‑quality replacement for part numbers 9261586G, 4628627, 9246749, PG200016G.
| Parameter | Details |
|---|---|
| Application | Excavator boom hydraulic system, digging, loading, grading |
| Product Name | Hydraulic Boom Cylinder (Left/Driver Side) |
| Compatible Models | John Deere 240D, 240D LC |
| OEM Part # | 9261586G (replaces 4628627, 9246749, PG200016G) |
| Grade | Premium aftermarket |
| Certifications | ISO9001, CE |
| Warranty | 12 months |
| MOQ | 1 piece |
Built and tested to match Deere 240D series hydraulic requirements.
| Specification | Data |
|---|---|
| Cylinder Bore | 125 mm |
| Piston Rod Diameter | 85 mm |
| Working Stroke | 1,120 mm (OEM match) |
| Rated Pressure | 34.5 MPa (5,000 PSI) |
| Test Pressure | 51.8 MPa (7,500 PSI) |
| Barrel | Forged ST52 seamless alloy steel |
| Rod | Heat‑treated high‑carbon steel + hard chrome plating (25–35 μm, 68–70 HRC) |
| Seals | NBR + polyurethane, heat/oil resistant |
| Surface | Phosphated + electroplated + topcoat (anti‑rust) |
| Temperature Range | -25°C to 85°C |
| Service Life | 8,000+ hours (normal heavy use) |
| Mounting | Pin‑type with hardened steel bushings |
Belparts specializes in aftermarket hydraulic cylinders and excavator spare parts. With 10+ years of manufacturing and export experience, we serve customers across North America, Europe, the Middle East, and Southeast Asia. Strict quality control from raw materials to final testing ensures reliable products and after‑sales support.
A: John Deere 240D and 240D LC (left/driver‑side boom cylinder, PN 9261586G).
A: 4628627, 9246749, PG200016G.
A: Brand‑new premium aftermarket unit, not a core or rebuild.
A: 125 mm bore, 85 mm rod, 1,120 mm stroke.
A: 12‑month warranty against manufacturing defects.
A: Yes, MOQ is 1 piece for emergency replacement.
