起源の場所:
中国
ブランド名:
Belparts
証明:
CE
モデル番号:
330DL
| Hydraulic Parts | Hydraulic Pump | Final Drive | Travel Reduction |
| Swing Motor | Swing Reduction | Control Valve | Gear Parts |
| Slew Bearing | Engine Assembly | Hydraulic Cylinder | ECU |
Remark: Original text wrong marked Hyundai, this cylinder fits 330D / 330DL / 330DLN Excavator, not Hyundai machine

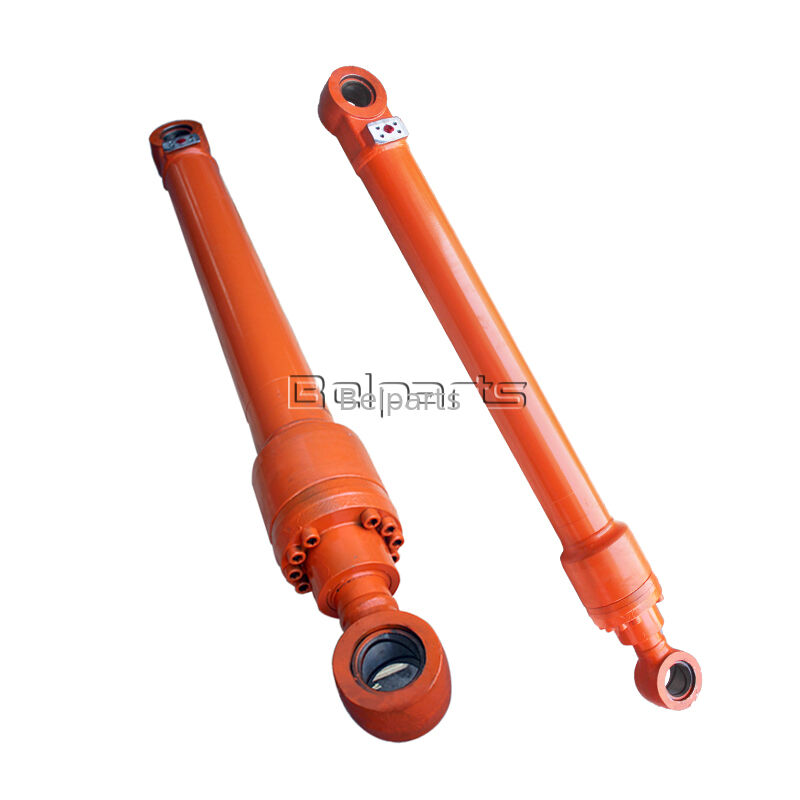

Premium aftermarket stick hydraulic cylinder assembly for 330D,330DL,330DLN heavy excavator, OEM part No.:234-4601 / 2344601 / CA2344601, direct interchange original factory arm cylinder, controls stick extend & retraction for quarry mining, rock excavation, heavy earthmoving engineering. Full original dimension, pin pitch, oil port layout for plug-and-play installation without machining modification.
| Item | Specification |
|---|---|
| Product Name | Hydraulic Arm / Stick / Dipper Cylinder |
| Fit Model | 330D,330DL,330DLN Crawler Excavator |
| OEM PN | 234-4601,2344601 |
| Quality Grade | New High Quality Aftermarket |
| Warranty | 12 months against manufacturing defect |
| MOQ | 1 unit available in stock |
| QC Standard | ISO9001 certified, full high-pressure leakage test before delivery |
| Spec Item | Data |
|---|---|
| Bore Diameter | 150mm |
| Piston Rod Diameter | 110mm |
| Rated Working Pressure | 34.3MPa |
| Factory Test Pressure | 51.45MPa(1.5×nominal working pressure) |
| Barrel Tube | ST52 seamless alloy steel, precision deep inner honing, low roughness inner wall |
| Piston Rod | 40CrMo quenched & tempered, hard chrome coating 28~32μm, surface hardness HRC67~70 anti-abrasion & anti-rust |
| Matched Seal Kit PN | 234-4601-KIT |
| Operation Temp | -25℃ ~ +85℃ |
| Structure | Double ear with copper wear-resistant bushing, built-in end buffer to reduce impact damage |
Our factory specializes in CAT D-series hydraulic cylinders over 12 years, complete boom/arm/bucket cylinder range covering 320D/330D/336D/345D series, products mainly exported to Africa, Southeast Asia, Middle East aftermarket spare parts market.
Q1: Can it fit 336D?
A: No, 336D uses independent part number, dimension differs, cannot cross installation.
Q2: Standard package includes seal repair kit?
A: Standard cylinder without seal set; matched seal kit available separately with preferential price when purchasing together.
Q3: Export anti-rust packaging?

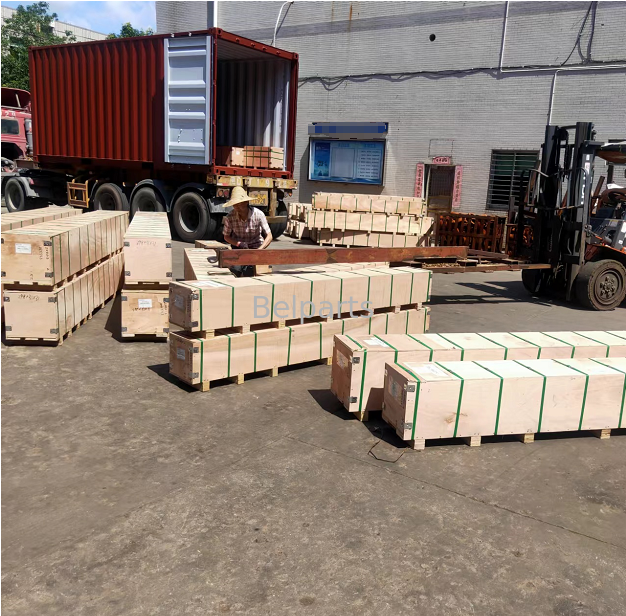

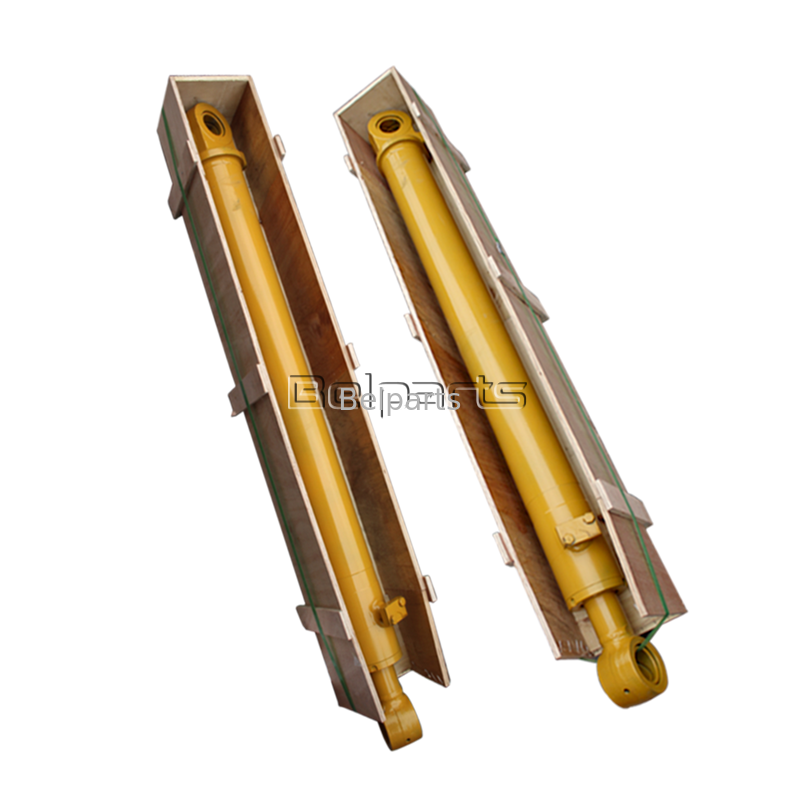

A: Barrel filled anti-rust hydraulic oil, piston rod coated anti-rust grease, wrapped waterproof PE film + solid export plywood case for long ocean transit.
Q4: Discount for full set boom+arm+bucket cylinder bulk order?
A: Combined full-set purchase enjoys tiered discount plus consolidated shipment to cut total logistics cost.
Q5: After-sales for oil leakage within warranty?
A: Provide onsite leakage photos + excavator serial number, we supply free replacement seal kit or remote installation guidance in warranty period.
